Connection method of PE carbon spiral tube

Connection method of PE carbon spiral tube

1. Selection of carbon tube diameter According to the cable outer diameter, allowable voltage, current and other engineering conditions.

2. Digging engineering trenches According to the regulations of relevant departments and user requirements, the width and depth of trenches should be determined according to the number of cables laid. The distance between the tube and the groove is 50 mm, and the distance between the tube and the tube is 30 mm.
  3. Laying After placing the carbon tube in the ditch, the bent area must be sealed with cement to prevent it from winding or squeezing. At the junction of the two sheath pipes, the head of the sheath pipe must be fixed with brick and cement.

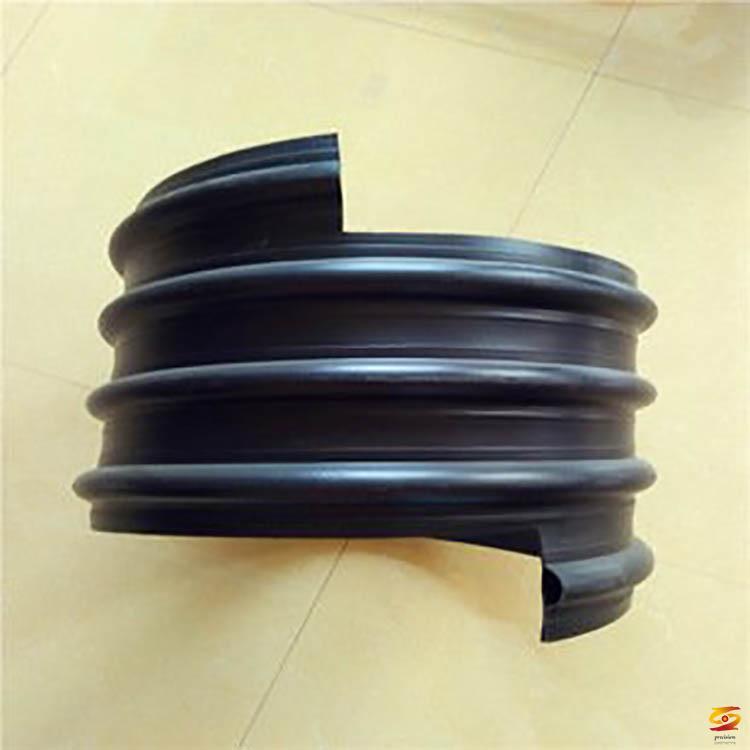

  4. Connection When two carbon pipes need to be butted, first rotate the joint to the end of the pipe to be connected, and then reverse to the other end of the pipe to be connected, and then use PVC sealing tape to wind it.If you want to know more about it please do not hesitate to contact me. WhatsApp:+86-15966835076
