Drip Molding Machine

Automatic drip molding machine  , carpet drip molding machine  , floor mat spot molding machine  , prayer floor mat drip molding machine  , non-woven fabric drip molding machine  , cotton  , synthetic fibers  , blends  , and non-woven fabrics drip molding machine
Inquiry Send Email

Description

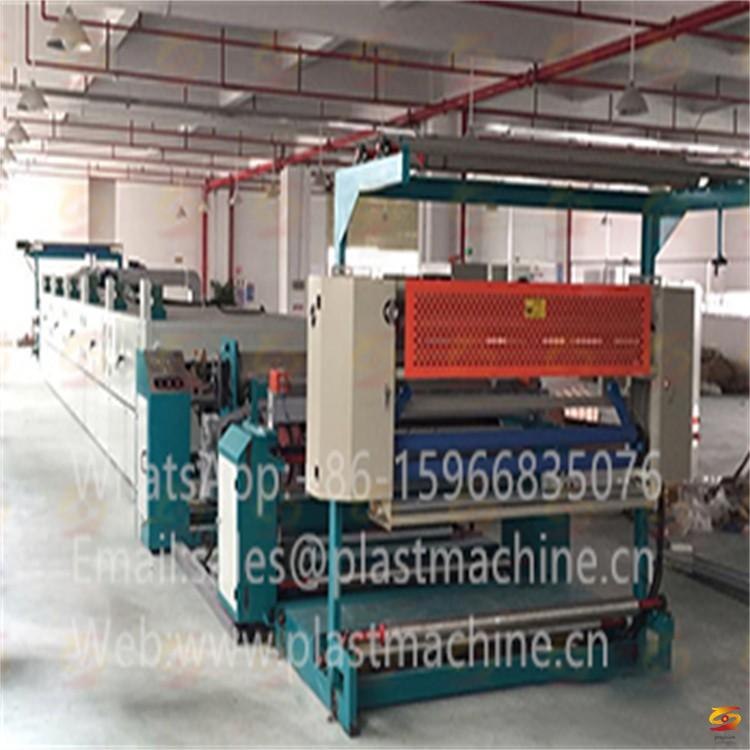

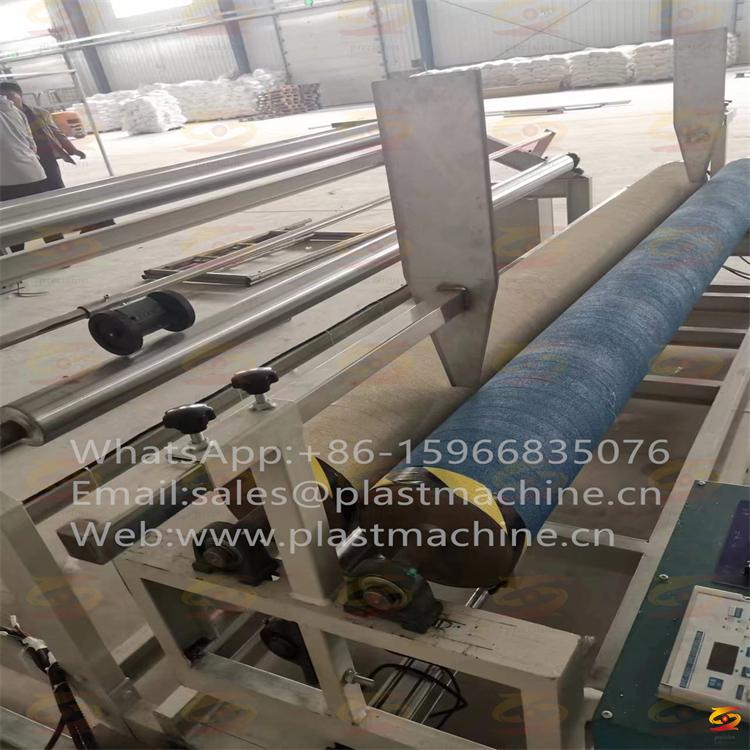

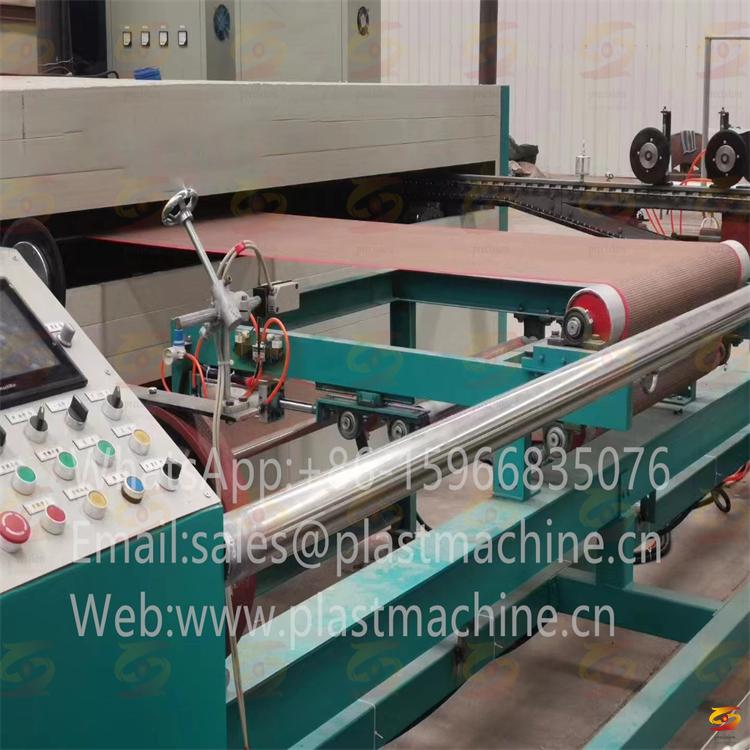

Automatic drip molding machine is an intelligent automatic control device that replaces manual drip molding. It can precisely drip glue on various complex patterns on the mold, control the amount of glue, and choose different colors of glue. The drip molding speed is adjustable, and there is no need to wipe the mold without drawing. The bottom coating of the product can also be automatically loaded and filled by the equipment.

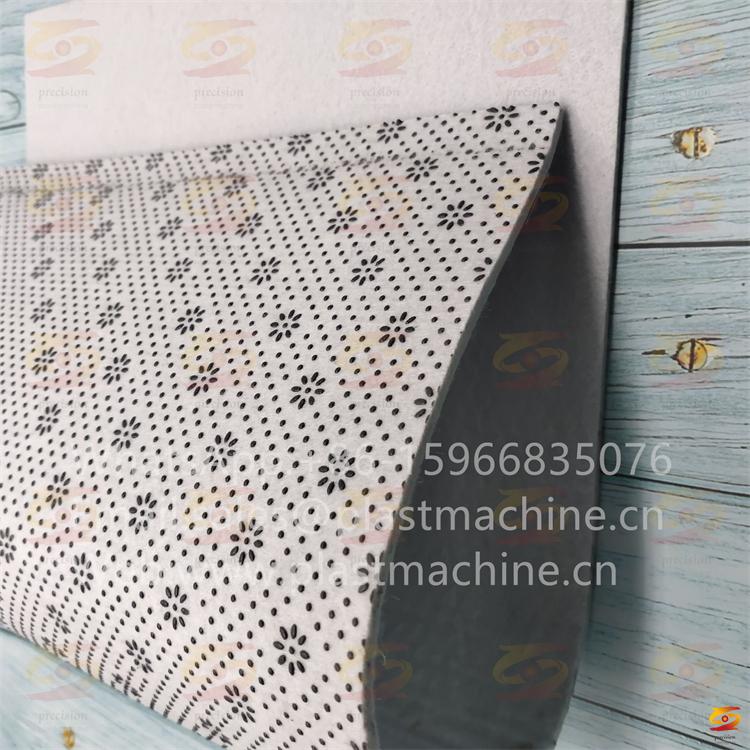

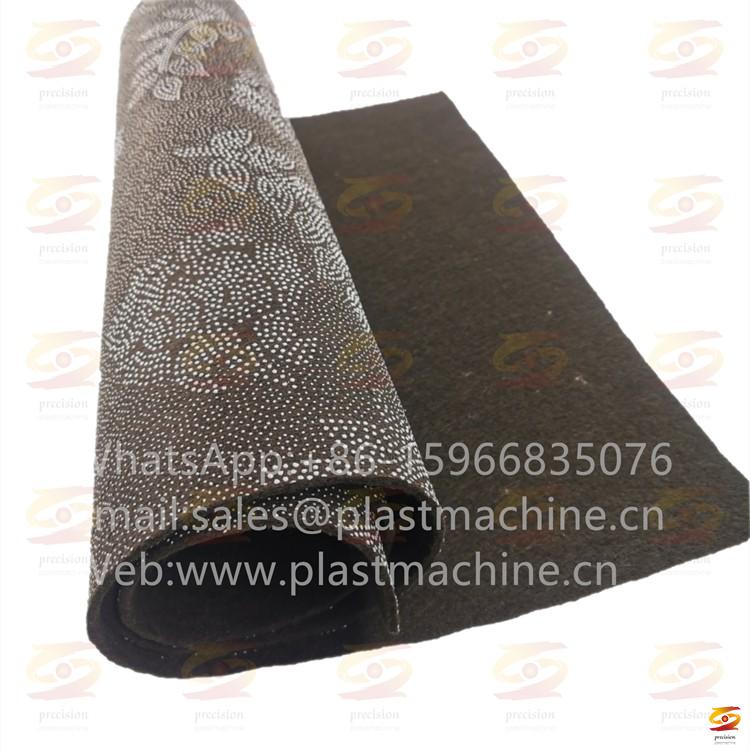

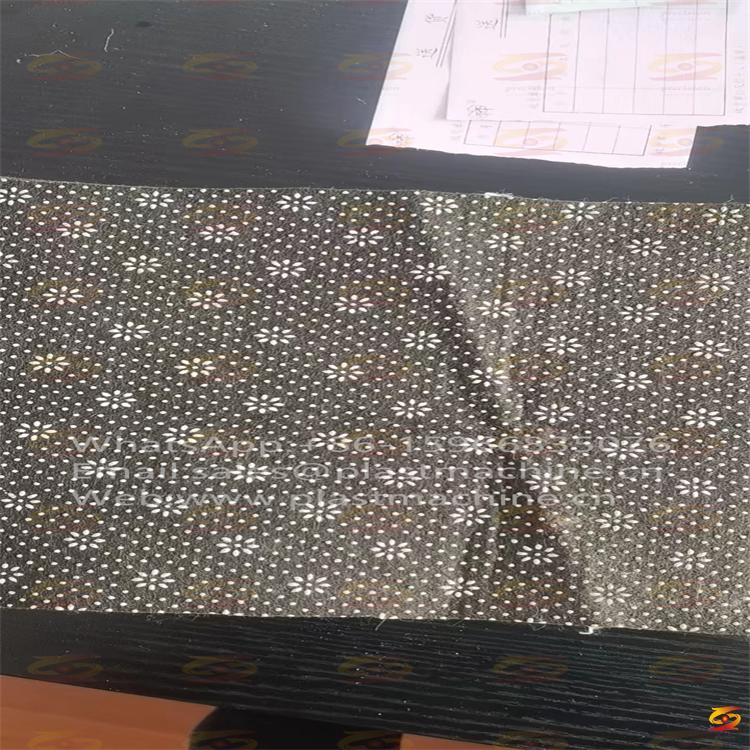

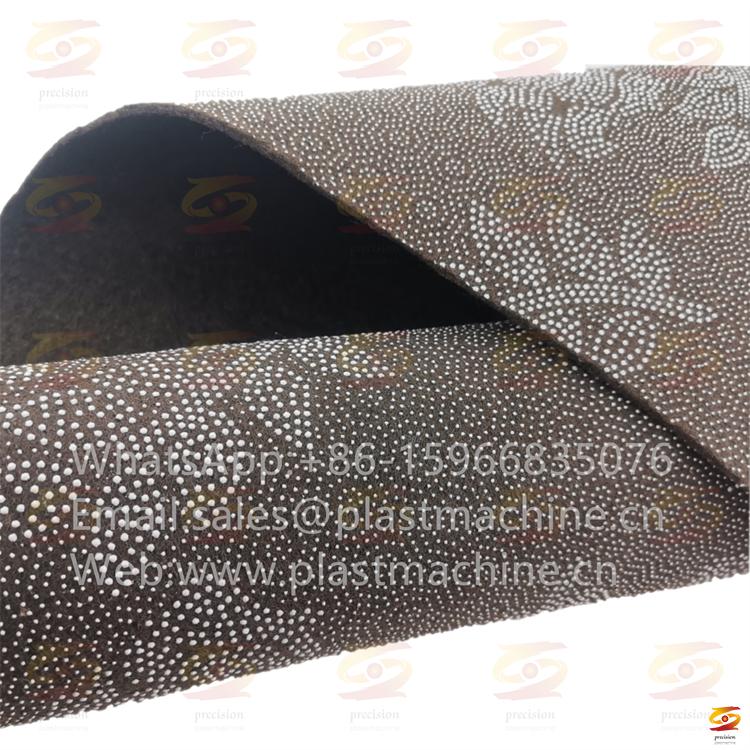

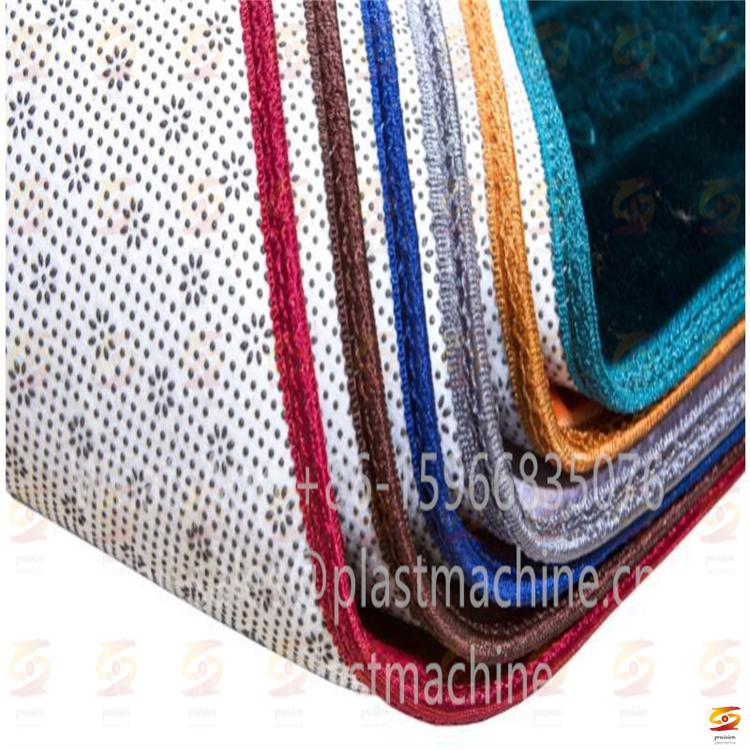

Usage: Used for printing plastic dots or patterns on fabrics such as cotton, synthetic fibers, blends, and non-woven fabrics. Used for producing knitted, dot molded glove fabrics, decorative fabrics, and hot stamping with gold and silver.



Process: fabric feeding - circular dot printing - oven drying - fabric dropping.

Electric heating oven: 15m (Customizable length according to requirements)

Power: approximately 150KW

Mechanical roller surface door width: 1800-4500mm, customizable

Electric heating temperature: 100-220 degrees Celsius

Process speed: 5-50/min

production process

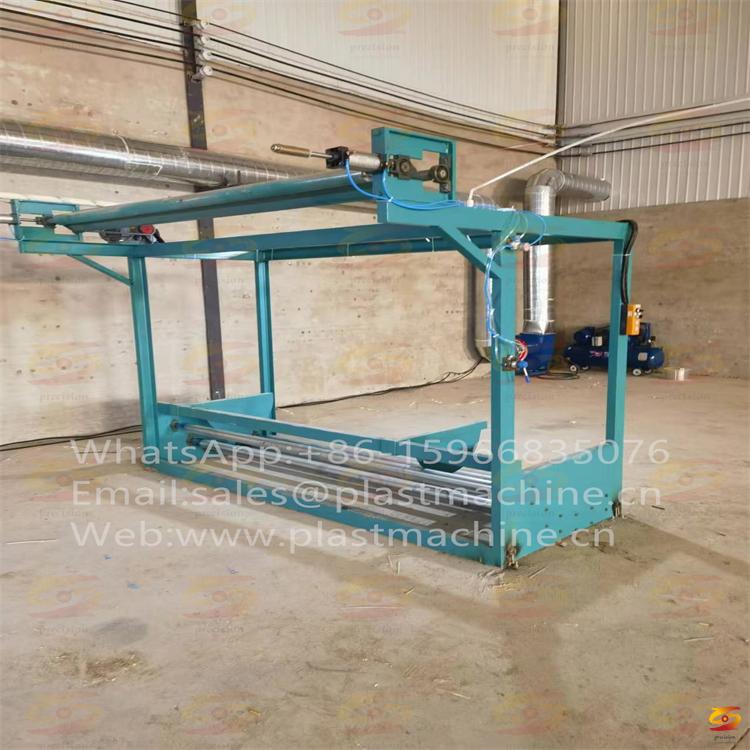

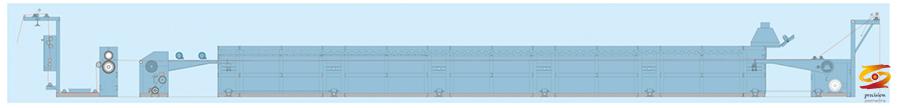

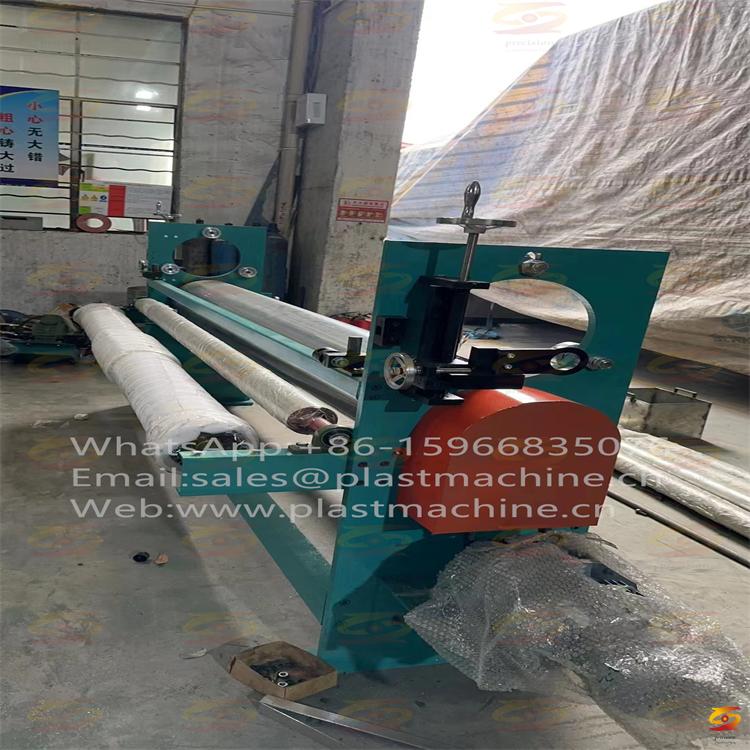

Process: Roll loading into fabric - Round dot printing - Oven drying - (Rolling car hot stamping) - Roll loading and fabric dropping.

main parameter

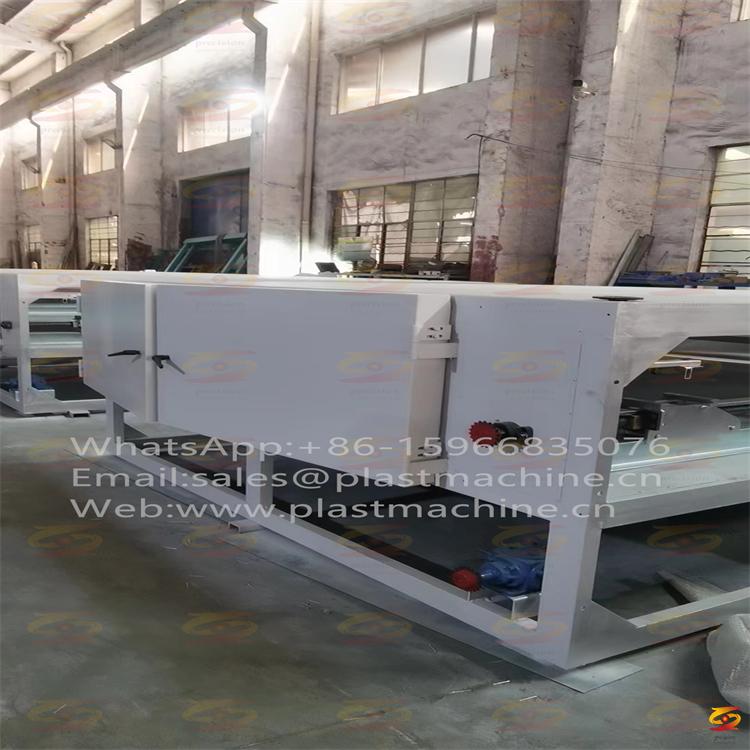

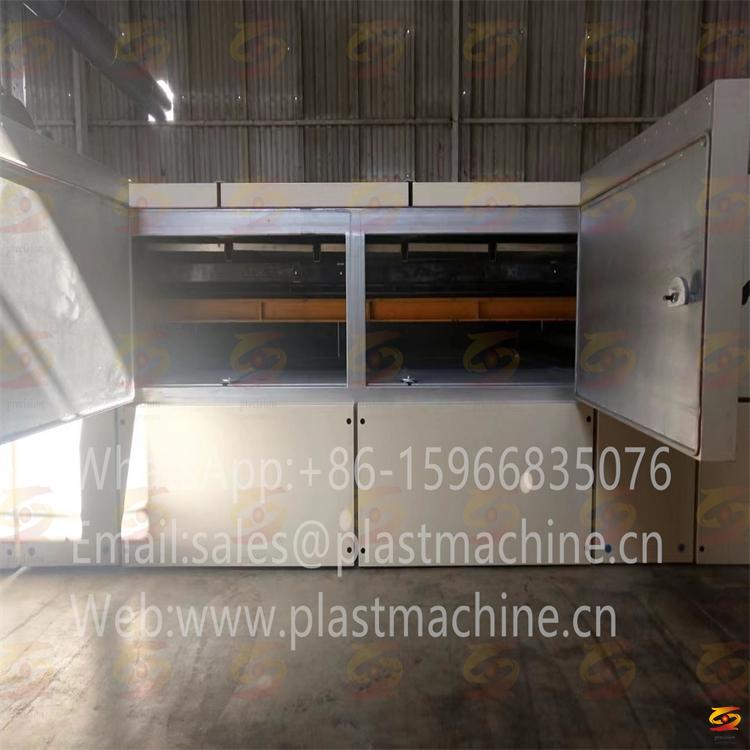

Electric oven: 5 sections (3 meters per section)
Oven heating method: electric heating
Electric heating temperature: 100-200 degrees.
Process speed: 4-50m/min
Effective width: 1620mm/1850mm/2050mm/2250mm/2450mm/2650mm/2850mm/3050mm

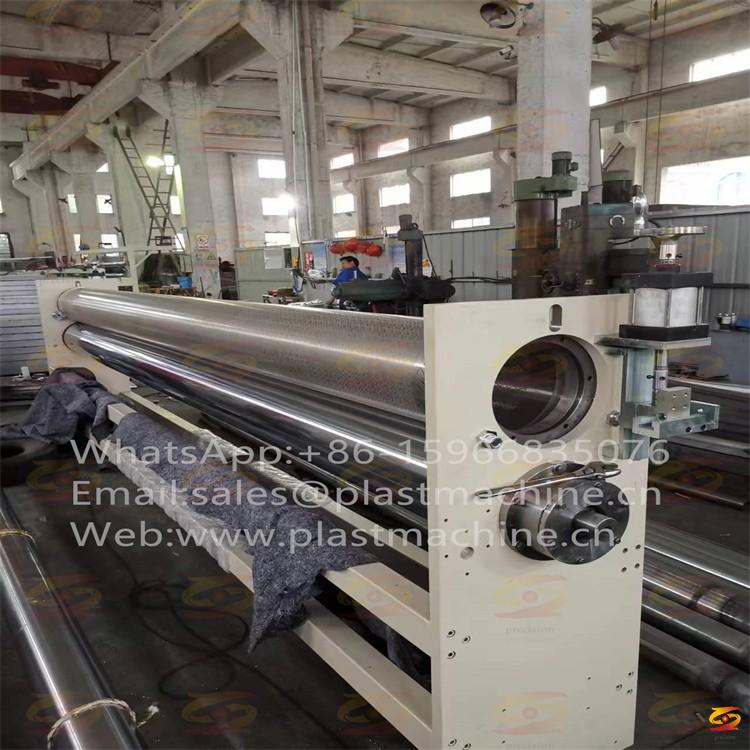

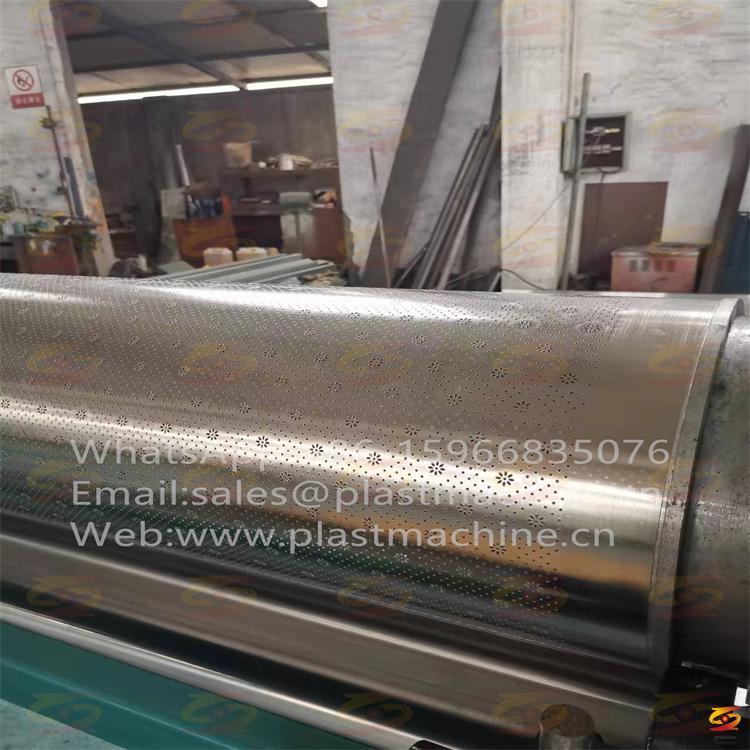

Circular mesh perimeter: 1018mm

Machine power: 140KW (1620mm width machine)

1 year warranty

The above parameters are for reference only, and the specific parameters are subject to the contract.
