PARALLEL TWIN SCREW EXTRUDER

PARALLEL TWIN SCREW EXTRUDER  , EXTRUSION MACHINE EXTRUDER  , DOUBLE SCREW EXTRUDER，CO-DIRECTIONAL PARALLEL SCREW GRANULATION EXTRUDER
Inquiry Send Email

Description

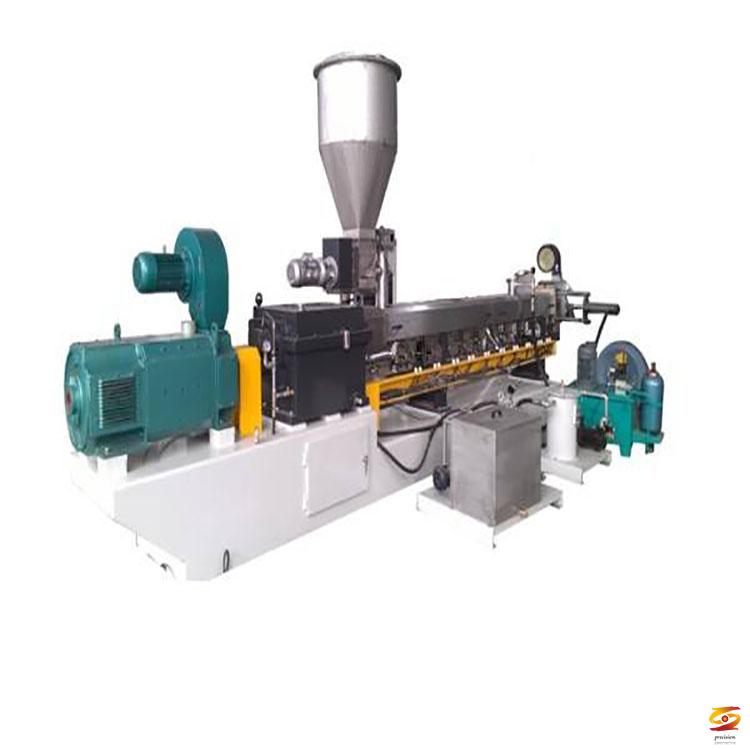

SJP series parallel twin screw extruder is a special equipment suitable for various types of PVC powder extrusion. Equipped with different molds and auxiliary machines can produce various types of PVC plastic pipes, profiles, plates, sheets, bars and pellets. The screw is cooled by an oil cooling system.
The barrel is cooled by a special air cooling system. The control system adopts special computer control. According to different formula requirements of users, equipped with reasonable screw structure. To achieve the best plasticization; bark state and material quality.

The screws are all processed by high-precision special-purpose CNC screw milling machine, which can ensure that the extrusion performance of each similar extrusion equipment is highly reliable. Take the lead in introducing the international advanced variable screw pitch and variable depth screw design technology. Make the material shearing and compressing in the screw softer and closer to the actual needs. Special design of distribution box. Thrust bearings are particularly enlarged. The bearings are imported from the original. Long transmission life, can withstand greater extrusion pressure. The electrical system uses imported originals to a large extent, and has multiple fault alarm functions. Less failures. Easy to exclude. The cooling system is specially designed. The heat dissipation area is especially enlarged. The cooling is rapid, and the temperature control accuracy can reach ±1℃.

The parallel twin-screw extruder has the characteristics of low shear force, and is especially suitable for high-speed extrusion of profiles and large-diameter pipe extrusion.

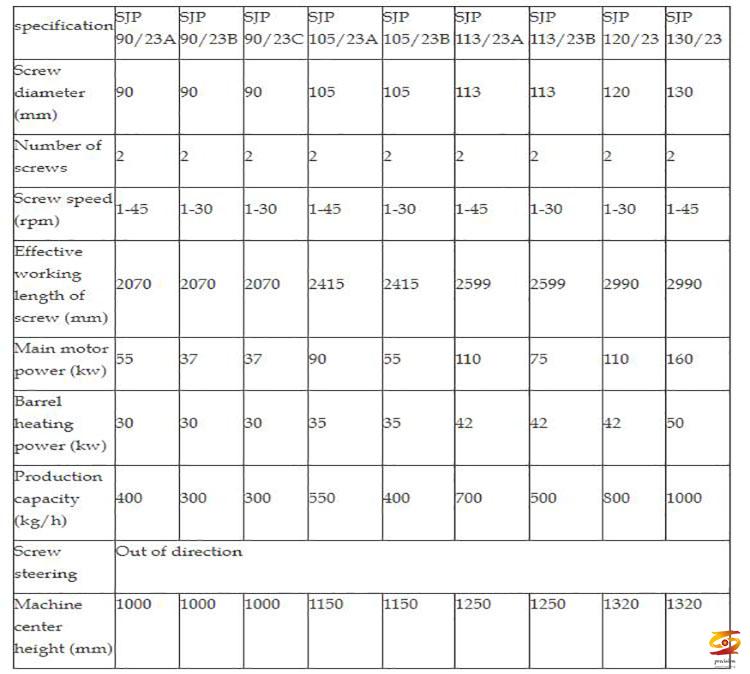

The main technical parameters
