PVC imitation marble slab production line plan and the clear process of pvc artifical marble sheet extrusion machine
PVC imitation marble slab production line plan and the clear process of pvc artifical marble sheet extrusion machineProduct specifications and features
Product specifications:
Width 1220mm
Length 2440mm
Thickness 3-5mm
Single 4mm sheet weight: between 21.5-23 kg
Product features:
It has the effect of natural marble, clear lines, and the simulation effect is as high as 99.5%. Uniform color, smooth surface, abrasion resistance, hardness up to 5H-7H, easy to clean, pollution-resistant, B1-level fire protection, no radiation, light weight, one-fifth the weight of natural marble, the price is much lower than natural marble.

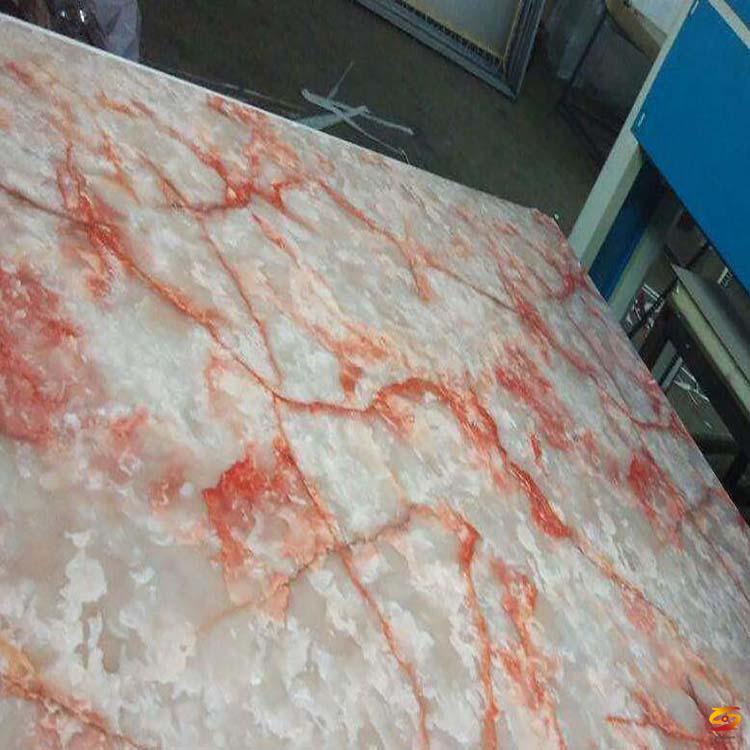

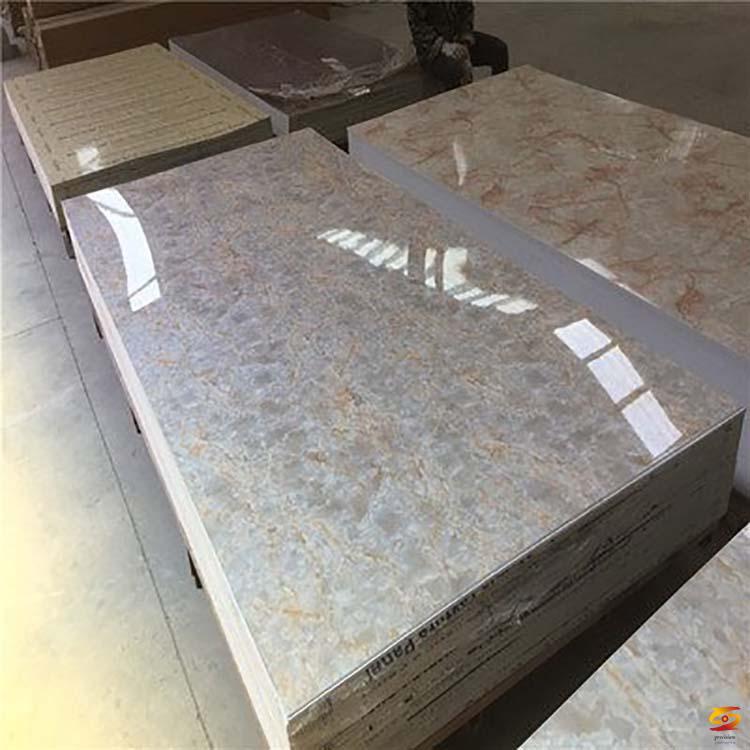

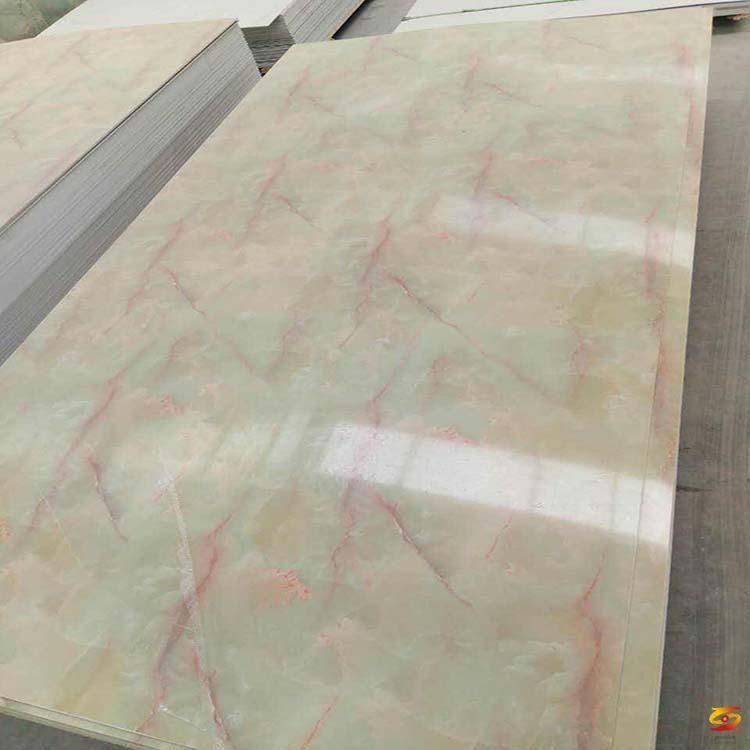

Variety of surface patterns

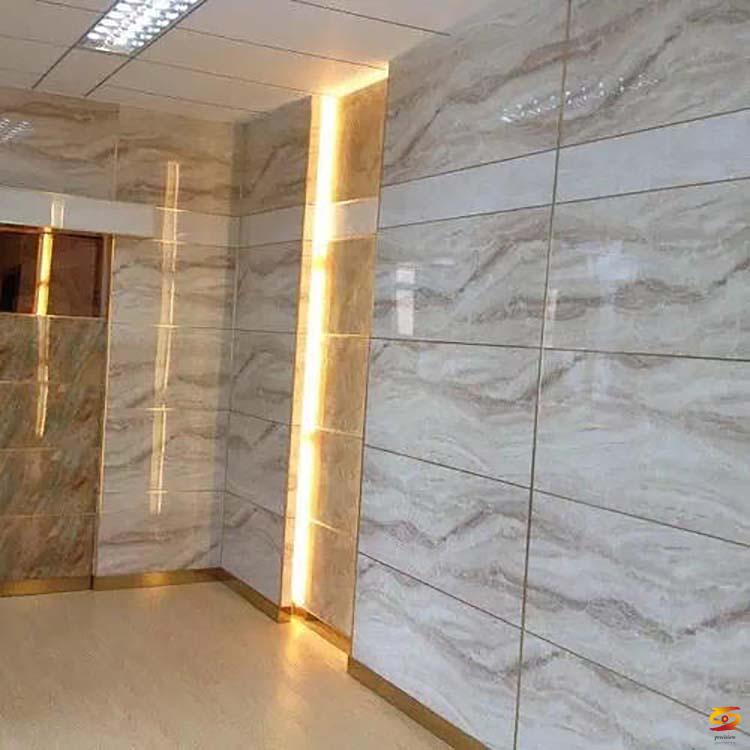

Product use:
Replace natural marble, widely used in interior decoration of various buildings
Molding
1. Add different raw materials to the high-speed mixer according to the recipe, mix and extrude through the extrusion molding machine, and then integrally molded by the three-roll calender molding unit, and the surface is covered with a polymer with marble texture The marble pattern is printed on the surface by film or thermal transfer process, and then the finished substrate is accurately cut by the cutting machine.
2. Put the finished base material from the previous production line into the UV paint on the UV equipment, and then dry and solidify it through the ultraviolet light of z, and treat the surface. The treated board has bright color, strong visual impact, wear resistance, strong chemical resistance, long service life, no discoloration, and easy to clean.
Sheet forming unit
High-speed mixing unit 500/1000
type
Hot mixing: 500L Cold mixing: 1000L
Feeder
Screw feeder
Need to consider dust
Vacuum powder feeder
Equipment advantages: The entire conveying process is completed in a closed state, to prevent pollution and damage caused by dust to the working environment, surrounding environment and operators.
80 conical twin screw extruder
T mold
Three-roll calender
Cooling brackets, tractors, shears
If you want to know more about it please do not hesitate to
contact me. WhatsApp:+86-15966835076.
