Plastic corrugated pipe and wire harness corrugated pipe are mainly divided into three materials: PE / PP / PA. What is the difference?

Plastic corrugated pipe and wire harness corrugated pipe are mainly divided into three materials: PE / PP / PA. What is the difference?

Plastic corrugated pipe and wire harness corrugated pipe are mainly divided into three materials, which are PE polyethylene, PP polypropylene and PA nylon. From the appearance, the surface of PA nylon corrugated pipe is shiny like oil, good flexibility, anti-twist, good bending performance; acid resistance, lubricating oil, cooling liquid, etc., the surface is bright and resistant to friction; it is three plastic corrugated The best quality in the tube. PE polyethylene corrugated pipe is very light and soft, and its main feature is low cost. PP polypropylene plastic corrugated pipe flame retardant VO. The specific differences between plastic corrugated pipe are as follows:

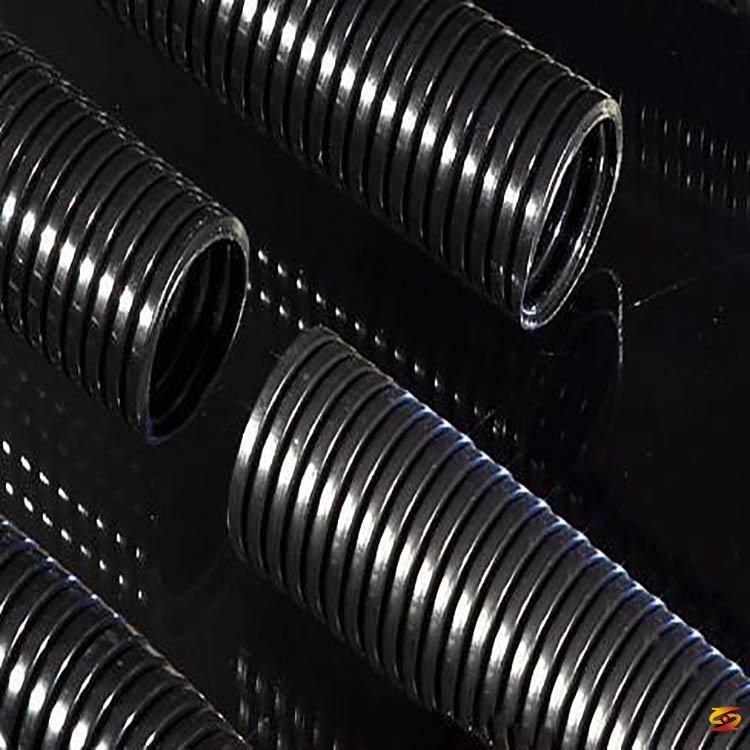

First type: PE plastic corrugated pipe

Product name: PE corrugated pipe plastic corrugated pipe

Material: Polyethylene PE

Working temperature: -30 ℃ ~ + 100 ℃ up to + 120 ℃ in a short time

Structure: Both inside and outside are wavy;

Yan Color: black, other colors can be customized (open according to need)

Characteristics: good flexibility, surface gloss, chemical resistance

Application field: It can be used in machine tool machinery, electrical equipment, food machinery, automation equipment,

Electric motor, protect cables and wires from external forces and insulation

How to use: Insert the wire and cable into the tube, and then connect the connector

Plastic corrugated pipe nylon corrugated pipe

The second kind: PP flame retardant corrugated pipe

Product name: PP plastic corrugated pipe

Material: PP polypropylene;

Working temperature: -30 ℃ ~ + 100 ℃ up to + 140 ℃ in a short time

Structure: Both inside and outside are wavy;

Yan Color: black (open according to need)

Scope of supply: flame retardant, FV-O

Characteristics: good flexibility, surface gloss, chemical resistance

Application field: It is mainly used for automotive wiring, but also for machine tool machinery, automatic instruments, motors, motors, and protection of cables and wires from external forces and insulation

How to use: Insert the wire and cable into the tube and use it with the corresponding model of the Desheng series hose connector.

The third kind: PA nylon corrugated pipe

(Divided into flame retardant and non-flame retardant)

Product name: nylon corrugated pipe

Material: nylon PA6

Working temperature: -40 ℃ ~ + 125 ℃, can reach + 150 ℃ in a short time; flame retardant nylon hose can reach V0 level;

Structure: Both inside and outside are wavy;

Yan Color: black, other colors can be customized (open according to need);

Characteristics: good flexibility, anti-twisting, good bending performance; acid resistance, lubricating oil, coolant, etc., bright surface gloss, friction resistance;

Carrying capacity: can withstand the heavy pressure of the foot, without breaking or deforming, can recover quickly, and without any damage itself;

Application areas: machinery manufacturing, electrical insulation protection, lighting equipment, automobile manufacturing, aviation equipment, subway, train, automatic control and other industries;

How to use: Insert the wire and cable into the pipe, and then match with the special corrugated pipe joint.

Harness threading corrugated pipe plastic corrugated pipe

Desheng Electric can also customize PVC corrugated pipe, the color can also be customized

Material: PVC

Temperature: -40 ℃ ~ + 80 ℃ up to + 100 ℃ in a short time

Yan Color: white, other colors can be purchased with MOQ requirements.

Product certification: European CE, European environmental protection ROHS, REACH.

Features: good gloss on the surface; good mechanical bearing strength; good softness;

Usage: It can protect wires and cables from external abrasion and insulation load-bearing capacity: It is not easy to deform, but it can be recovered quickly without any damage itself.

Application occasions: machinery cabinets, machine tool manufacturing, power equipment, automation devices, packaging and other machinery;

How to use: Insert the wire and cable into the tube, and use it with the model corresponding to the DS: SM-G, SM series hose connector
