The latest version: SPC Stone Plastic Floor Equipment Feasibility Report (Stone Plastic Floor Production Line Introduction)

The latest version: SPC Stone Plastic Floor Equipment Feasibility Report (Stone Plastic Floor Production Line Introduction)

spc floor equipment

spc stone plastic floor equipment

spc floor machine equipment

spc floor production equipment

Stone plastic floor equipment

WPC / spc / LVT stone plastic / stone crystal floor machine


Introduction of SPC Floor Production Line

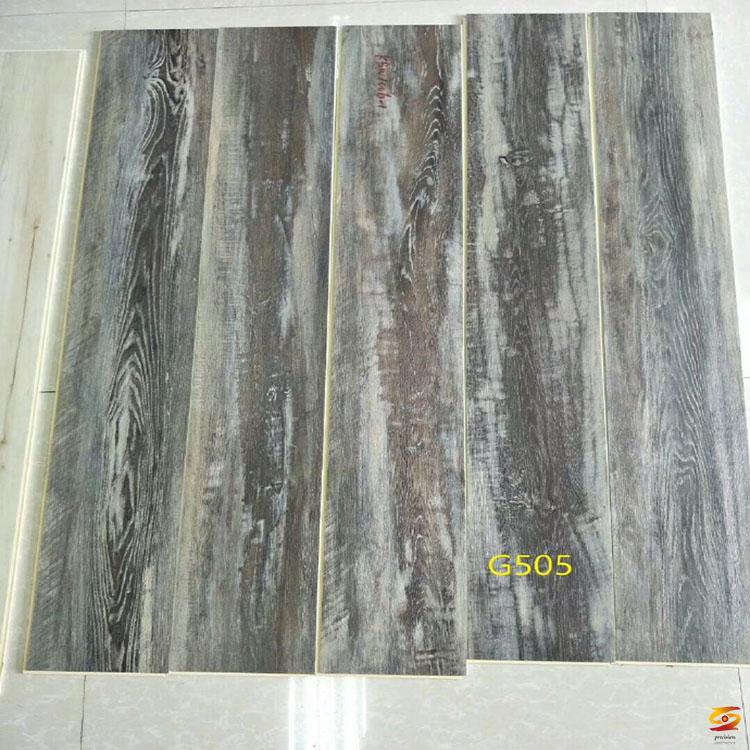

1. SPC Floor Description
SPC floor is a new environmentally-friendly floor developed based on high technology. It has zero formaldehyde, mildew proof, moisture proof, fireproof, insect proof and simple installation. It is very popular in developed countries in Europe and America and in the Asia Pacific market. With its excellent stability and durability, the stone-plastic floor not only solves the problem of moisture deformation and mildew of the solid wood floor, but also solves the formaldehyde problem of other decoration materials. It has a wide range of color patterns to choose from, suitable for indoor home improvement, hotels, hospitals, shopping malls and other public places.
SPC Floor Size

Length

950、1220、1850mm

Width

125-200mm

Thickness

3-8mm

SPC Floor Size Error

Length

±0.25 mm

Width

±0.025 mm

Straightness

Longitudinal view --- ±0.08 mm/ 1000 mm

Connection tolerance

±0.03 mm

Fit tolerance

±0.05 mm


2. Product Structure
SPC flooring is made of 5 layers. It includes UV layer, wear layer, color layer,SPC base layer and EVA layer .

3. SPC flooring Process Flow: mixer and dust-collection systems(mixing raw material)-- extrusion line(semi-finished floor)--UV coating machine--slitting machine--Slotting machine--Flooring backside laminating line --packing machine--finished product（There is crusher and miller for recycled floor product.）
A. Mixer

B. Extrusion Line


C. UV Coating Machine

D. Slitting Machine

E. Slotting Machine

F. Flooring Backside Lamination Line

G. Packing machine

H. Crusher

I. Miller

4. Two Models Introduction
1）SJSZ92/188 FOUR-ROLLERS Calendar SPC Flooring Production Line

2）SJSZ110/220 FIVE-ROLLERS Calendar SPC Flooring Production Line

5. Technical Parameter
No Model number SJSZ92/188 SJSZ110/220
1 Double screw type Conical Conical
2 Extruder motor 110KW 185KW
3 Total power 220KW 330KW
4 Rollers of Calender Four rollers Five rollers
5 Capacity 700-800kg/h 900-1200kg/h
6. The Total Cost of SPC Flooring
1）Formula

2）Details of SPC Floor cost (According to 4mm thickness SPC floor，Raw material prices, workers' salaries, and water and electricity prices are in accordance with Chinese prices)
1.1 4mm thickness SPC floor weight: Thickness(4mm)*Density(2.0)=8Kg/㎡.
Raw material cost, labor cost and electricity cost(3 RMB/KG)* 8KG=24RMB/㎡
1.2 PVC wear layer2-3RMB/㎡+colorful layer4RMB/㎡=6-7RMB/㎡(Wear layer thickness: 0.3)
1.3 Slotting cost, labor cost and electricity cost: 2-3RMB/㎡
1.4 Packing cost,labor cost and electricity cost: 1.5-2RMB/㎡
1.5 UV cost, labor cost and electricity cost: 1+1=2RMB/㎡
1.6 ixpe cost 3-4 RMB/㎡
1.7 Other parts labor cost: 2RMB/㎡
Above cost: 40.5-44RMB/㎡(USD5.78-6.28/㎡)This cost don’t include export lock patent fee.
2.1 export lock patent fee:4-6 rmb/㎡
Total cost: (USD6.35-7.1/㎡)
7. Final SPC Floor Capacity (According to 4mm thickness SPC floor)
4mm thickness SPC floor weight: about 8Kg/㎡.
1）SJSZ92/188 FOUR-ROLLERS Calendar SPC Flooring Production Line, capacity is about 14 ton/day, about 1750㎡/day, about 43750㎡/month(according to working 25 days/month).
2）SJSZ110/220 FIVE-ROLLERS Calendar SPC Flooring Production Line capacity is about 28 ton/day, about 3500㎡/day, about 87500㎡/month(according to working 25 days/month).
