what is PVC porous communication pipe production line
PVC porous communication pipe production line is widely used in telecommunication, mobile, broadband network, military communication, railway, transportation and other communication pipelines. Unit characteristics: The unit can choose different types of hosts according to different processing materials. The PVC host uses a conical twin-screw extruder to ensure plasticizing effect, high speed and high pressure extrusion. The PE host adopts a high-efficiency BM mixed polyethylene special screw to ensure high speed, high efficiency and precision extrusion. The multi-pipe head (PVC, PE) specially designed according to the characteristics of the processed materials.The production line of PVC porous communication tube not only ensures the stability of high-speed extrusion, but also ensures the smoothness of the inner and outer walls of the pipe. The traction machine adopts imported frequency conversion speed regulation, up and down driving mode, and the traction force is large. Meet the needs of high-speed production of units.

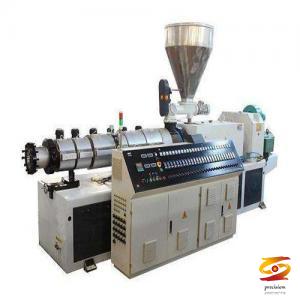

1. SJ65 / 30 single screw extruder
1. Main parameters:
Screw diameter: (mm)
65
Aspect ratio:
30: 1
Host power (Kw):
30
cooling method:
Forced air cooling
Large production capacity: (Kg / h)
70-80
2. Main configuration:
name:
Manufacturer:
Main motor
Wannan Motor
Screw barrel
Guangyou screw
Gearbox
Changzhou Guomao
Electrical System:
ABB frequency converter
Japan Omron temperature control table
French Schneider company small low-voltage electrical appliances
3. Equipment introduction:
This machine uses high-strength hardened gearbox. The barrel is slotted and equipped with an extended cooling water jacket. The feeding effect is good. The screw structure adopts German technology, which can make the melt melt evenly and the melt temperature is low.
2. Feeding machine
1. Main parameters:
Motor Power:
1.5
Large feeding capacity: (Kg / h)
300
2. Main configuration:
name:
Manufacturer:
Vortex air pump
Wuxi Zhongce
3. Equipment introduction:
The main machine and the barrel are designed separately, which is safe and convenient, and the independent filtering device is convenient for removing dust.
3 、 Drying hopper
1. Main parameters:
Electric heating power (KW):
3.9
Fan power (KW):
0.15
3. Equipment introduction:
The whole structure is made of stainless material with uniform heat distribution and fast heat exchange.
4. Sink
1. Main parameters:
Setting table length: (m)
3
Adjust the height up and down: (mm)
80
Box material: stainless steel
5. QY tractor
1. Main parameters:
Number of tracks:
2
Effective clamping length: (mm)
950
Large traction force: (t)
3.0
Center height: (mm)
1000
Motor power: (Kw)
1.1 × 2
2. Main configuration:
name:
Manufacturer:
reducer:
Zhejiang Redsun
Electrical System
Japan Hitachi frequency converter
Schneider's small low-voltage electrical appliances
3. Equipment introduction:
This machine adopts frequency conversion speed regulation. Each traction frame is driven independently to ensure that the traction speed is consistent, the pneumatic flexible compression, and the bearing adopts a self-aligning structure with a seat, which can effectively reduce installation errors. Adopt V type high friction coefficient rubber block.
6. Cutting machine
The main parameters:
1. Technical parameters:
Saw blade diameter: (mm)
200
Motor power: (Kw)
2.2
2. Main configuration:
Electrical System
Schneider's small low-voltage electrical appliances
7. Stacking rack
Pneumatic automatic turning, length 5 meters.
8. Mould

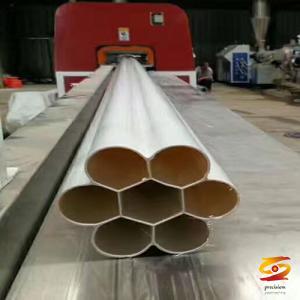

Mould Specifications The 7-hole plum tube mold material is high-quality alloy steel, after quenching and tempering, the mold surface is polished and chrome plated.
