PROFILE HOT STAMPING MACHINE

PVC PROFILE HOT STAMPING MACHINE  , ONLINE OFFLINE DOOR WINDOW PROFILE HOT TRANSFER PRINTING MACHINE  , WPC DOOR FRAME HOT STAMPING DEVICE
Inquiry Send Email

Description

Purpose function:

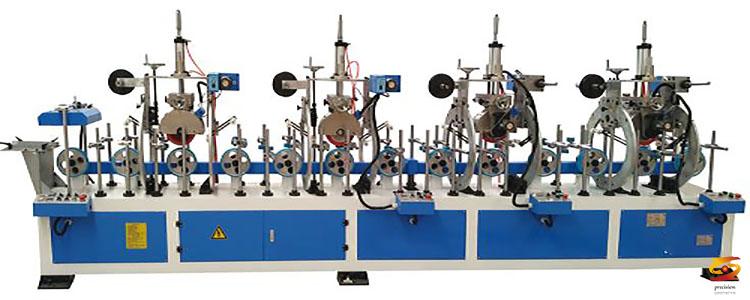

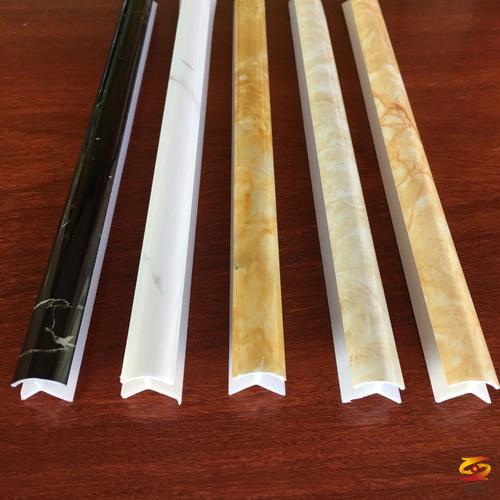

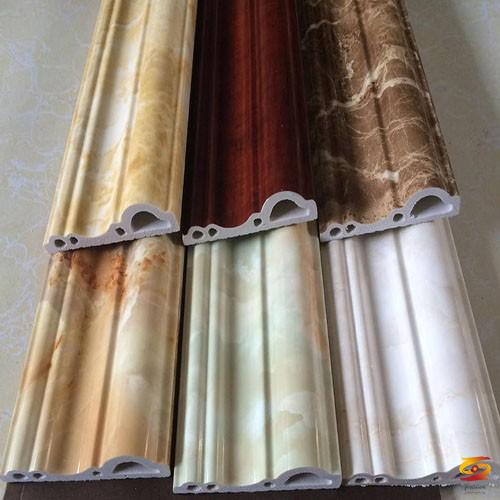

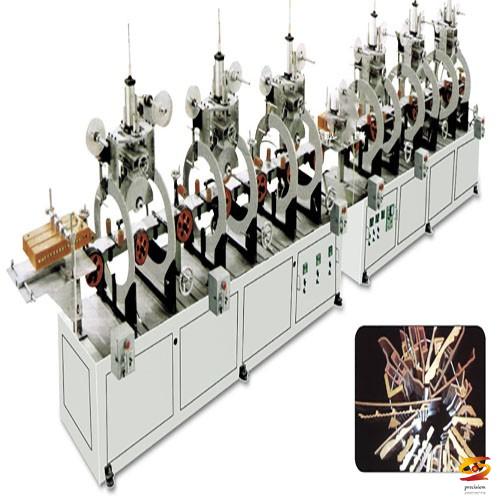

This machine is suitable for surface thermal transfer of various plastic products such as wood-plastic lines, solid wood lines, PS frame lines, skirting lines, corner protection lines, PVC and ABS, etc. The machine has a power transmission structure, transfer unit, substrate It consists of preheating device, cylinder or screw lifting method. According to the customer's profile needs to transfer the surface to choose to replace or a combination of 2-10 transfer units.

This machine uses Delta frequency conversion system to control the speed, Omron temperature control system to control the temperature, the pressure is supplied by the lifting structure, the transfer wheel is made of high temperature resistant silicone, and the temperature is measured accurately by an efficient temperature measurement method. Each transfer unit is equipped with a separate Film release and film collection device, the transfer angle can be adjusted freely.

technical parameter:

Effective transfer width 100mm

Transfer height 2~80mm

Transfer speed 2~12m/min

Maximum transfer temperature 240℃

Single head heating total power 3.6Kw

Transmission power 1.5Kw

Total power 18Kw

Air source pressure 0.1~0.9MPa

Dimensions 5000×800×1800mm

The total weight of the machine is 1800Kg
