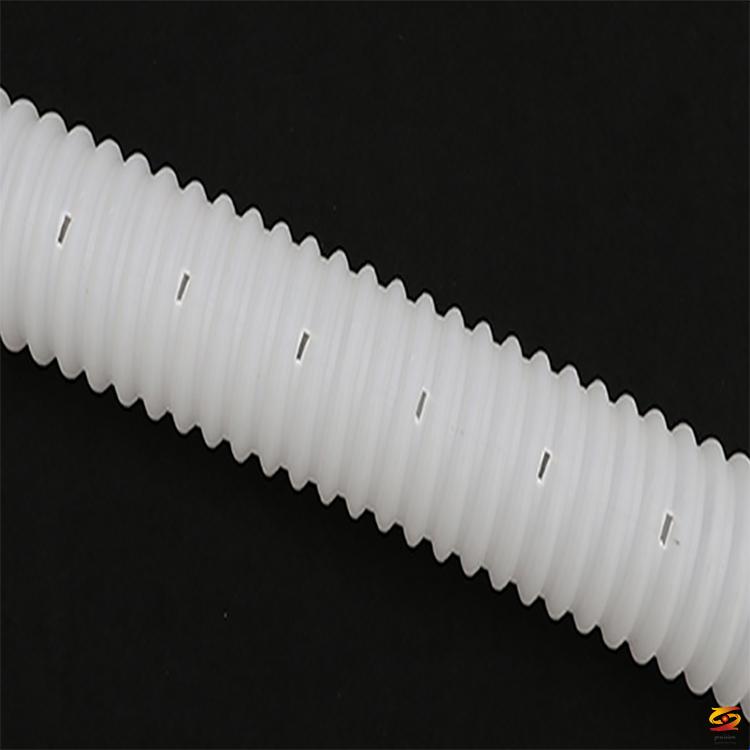

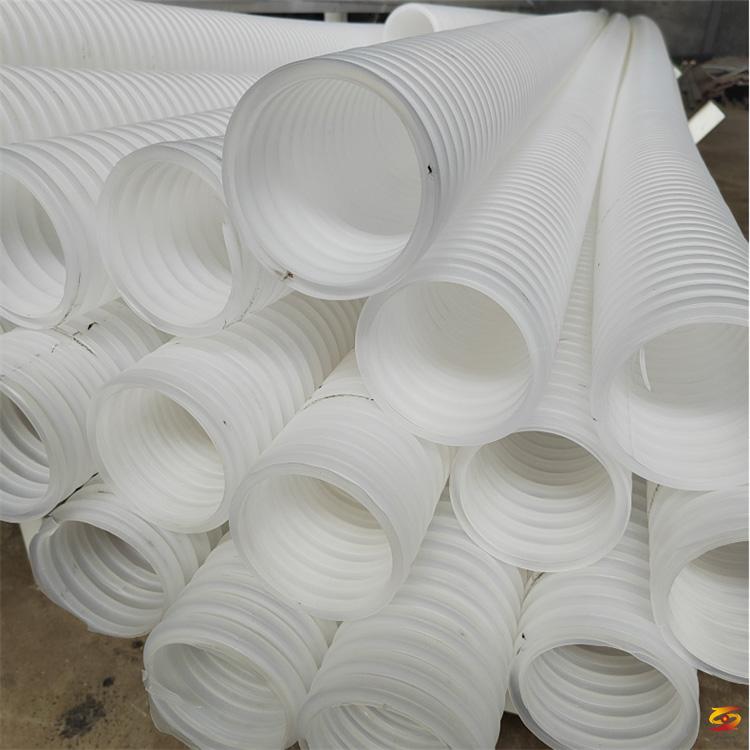

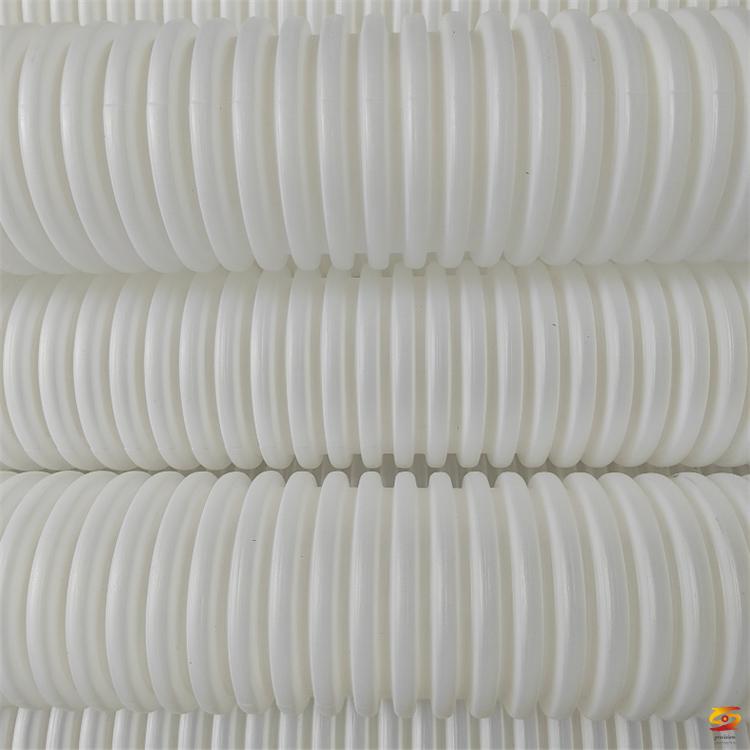

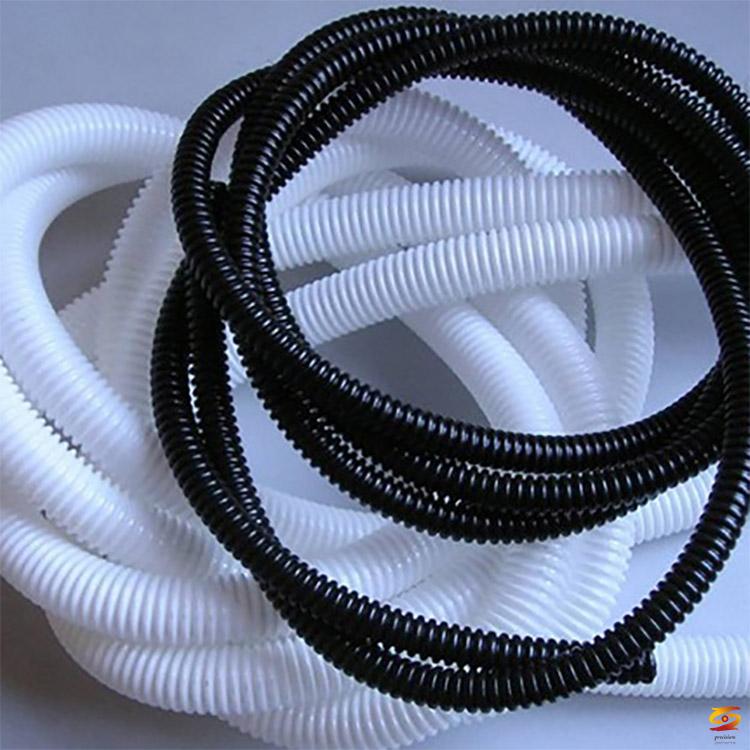

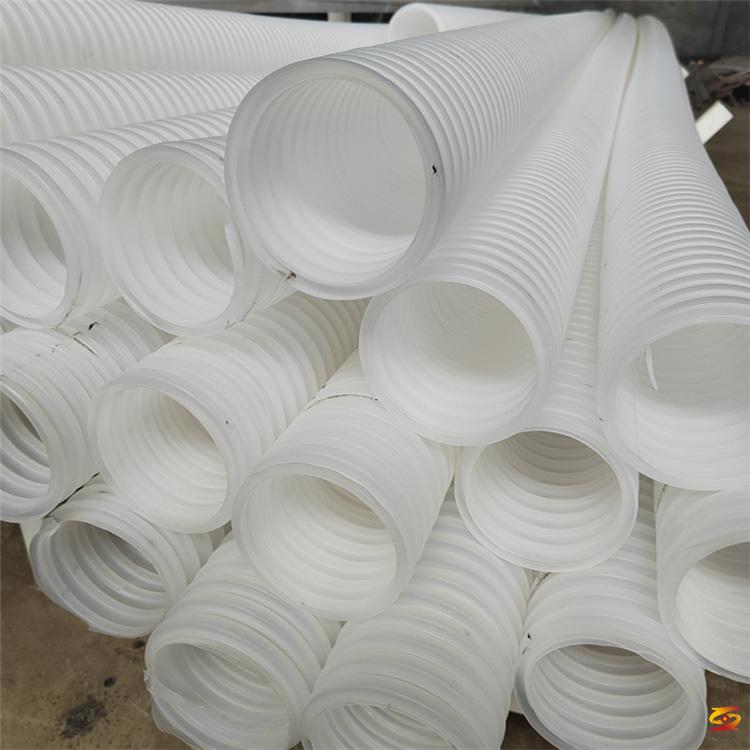

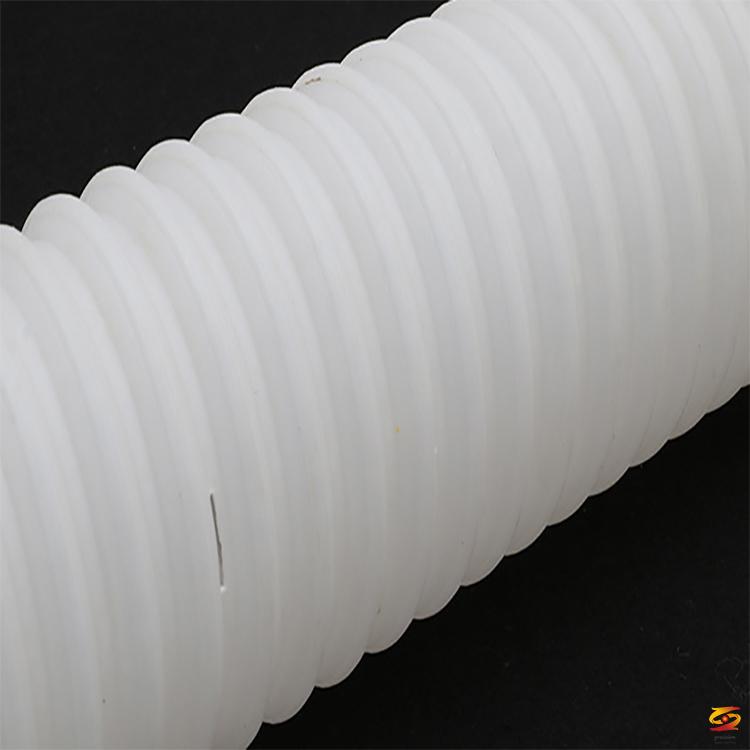

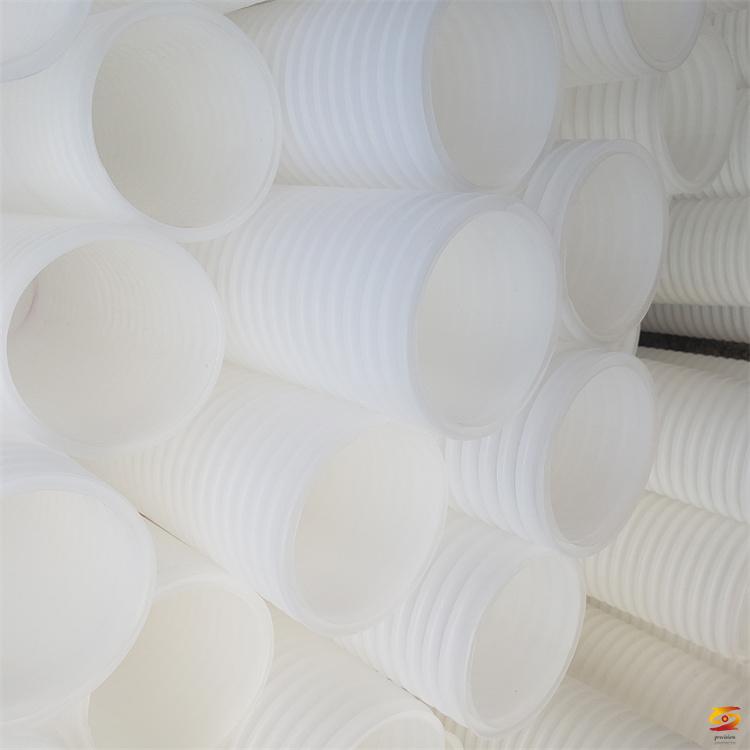

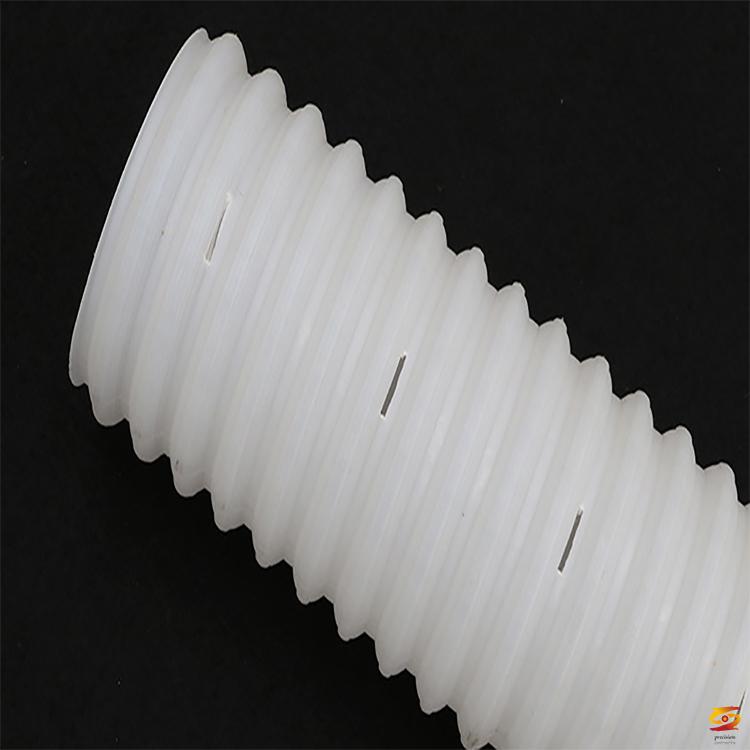

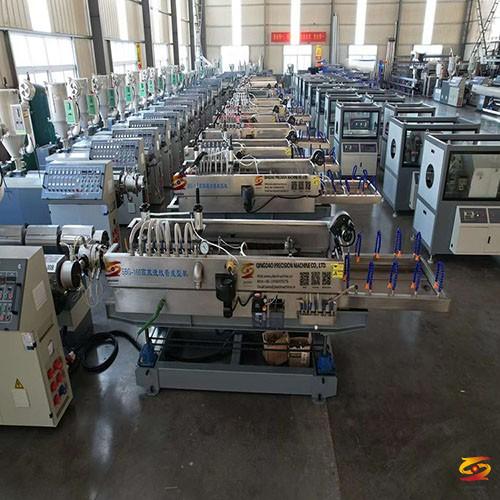

HDPE PVC PP DOUBLE WALL CORRUGATED PIPE MACHINE

pa pp pe pvc single double wall corrugated pipe making machine  , Pvc pe pp Corrugated Pipe Machine manufacturer  , pvc pp pe pa single double wall corrugated hose production line  , plastic single twin wall corrugated tube machine  , pvc pp pe pa single double wall corrugated pipe production line  , pe double wall corrugated pipe machine  , hdpe double wall corrugated making machine  , pe pvc double wall corruaged pipe production line  , Pvc pe Corrugated Pipe Machine  , pvc pp pe pa single twin wall corrugated pipe making machine  , PVC PP PE PA plastic double expansion pipe production line，
Inquiry Send Email

Description

PROJECT EVALUATION

1.1 Basic Infrastructure (Provided by customer)

a. Electricity network: can adjustable according to your local voltage standard.

b. Wire/cables: wires/cables from customer’s general control cabinet to the main control cabinet for PVC corrugated pipe production line; all electrical cable from the main control cabinet to each machine.

c. Water supply: main water pipe line supply and water pipes to machines

d. Compressed air supply: necessary compressed air for mold, forming machine, winder

e: lubrication oil: for reducer gearbox

1.2 Energy consumption:

a. Electricity requirement

Total Install power: 70KW.

Actual power consumption percentage: 80% of total power

b. Labor requirement

Max. Qty. of labors: 1 person

c: compressed air requirement: 0.4Mpa-0.8Mpa

PART I SPECIFICATION AND PRICE

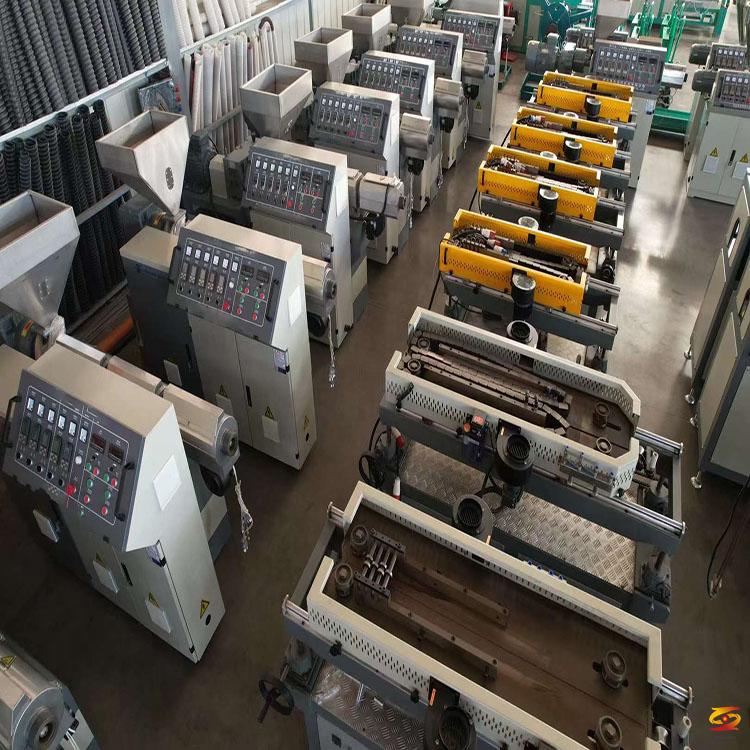

A   SYSTEM CONFIGURATION OF THE PRODUCTION LINE:

• 1 set of Vacuum feeding machine type ZK-300

• 1 set of Hopper dryer type GZ-50

• 1 set of Single screw extruder type SJ 90

• 1 set of Die head & forming machine (include 1set forming mold)

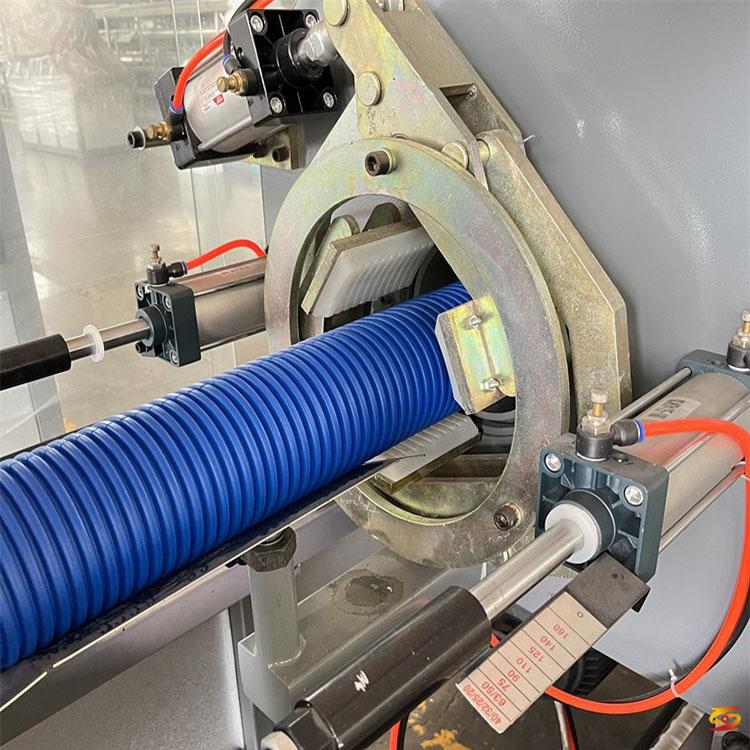

• 1 set of cutter

B  DETAIL TECHNICAL PARAMETERS OF THE ABOVE CONFIGURATIONS(The following parameters are for reference only and can be customized according to customer requirements)

1. Vacuum feeding machine

Item

Description

Unit

ZK-300

1

Material

Stainless steel

2

Loading capacity

kg/h

200

3

Motor power

KW

1.5

2. Hopper dryer

Item

Description

Unit

GZ-50

1

Material

Stainless steel

2

Charge Capacity

Kg

100

3

Heating power

KW

4

4

Fan power

W

180

5

Error

±1℃











3. SJ90 Single screw extruder

Item

Description

Unit

SJ90/30

1

Screw diameter

mm

90

2

L: D

25;1

3

Motor power

KW

AC30

4

Brand motor

Kaiyuan

5

Motor speed adjusting mode

Frequency conversion

6

Inverter

Holip

8

Extrusion output

Kg/h

300kg/h

9

Material of screw and barrel

38CrMoAlA,Nitrogen treated

10

Nitrogen depth

mm

0.5-0.8

11

Heating power

KW

4 zones, 14kw

12

Cooling power

KW

4 zones, 250w×4

13

Gear box

Hard gear surface, low noise design





















4. Die head

Die head

1

Die head material

40Cr

2

Inner structure

Spiral type

3

Melt pressure meter

Equip with a pressure meter to monitor the melt pressure in the die head

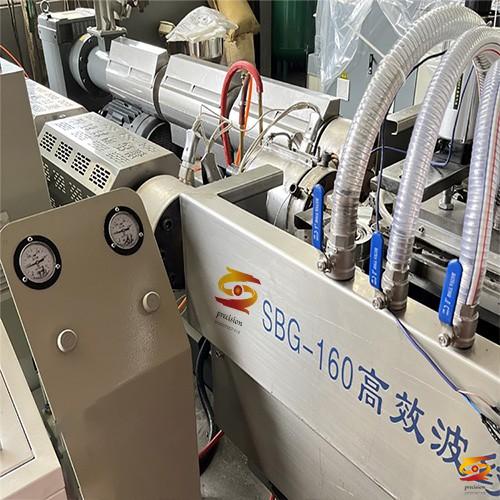

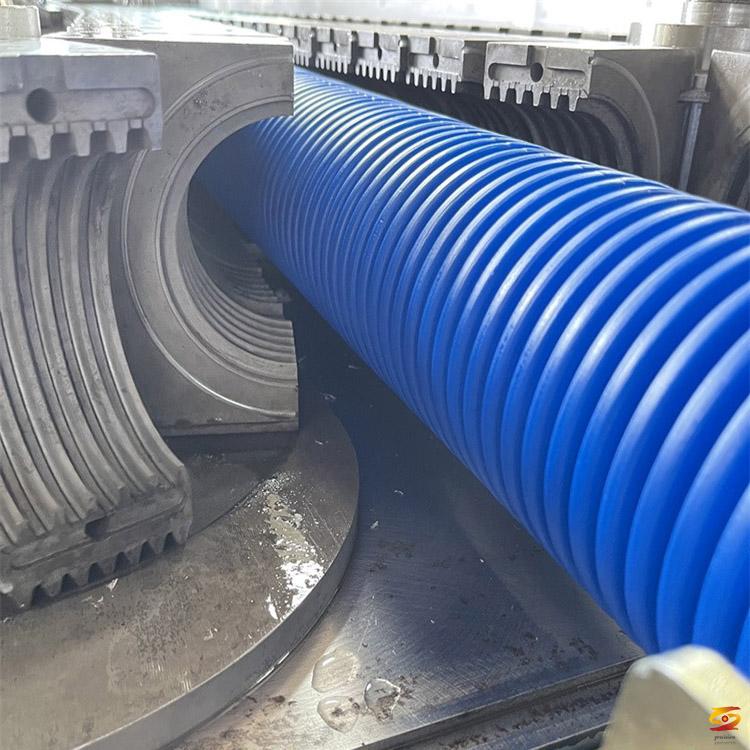

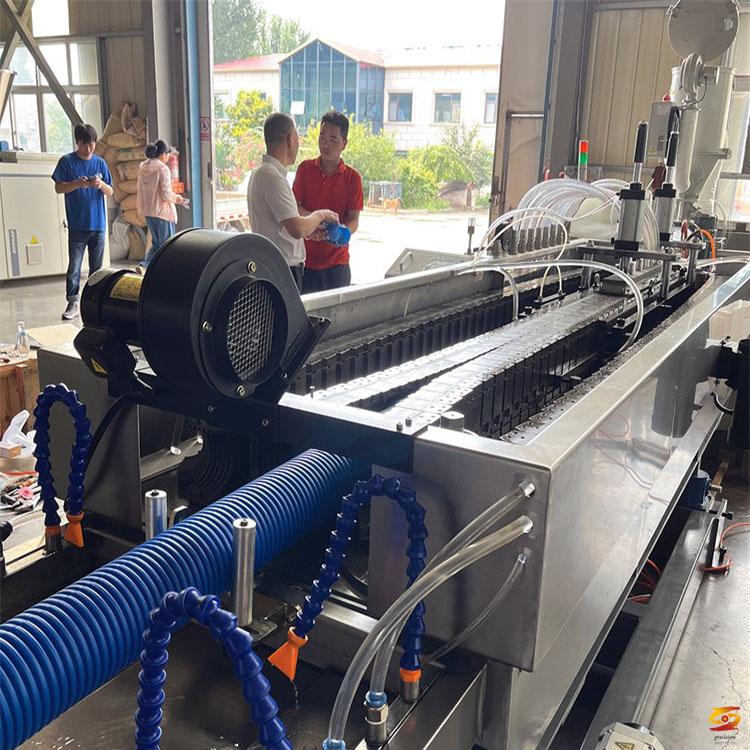

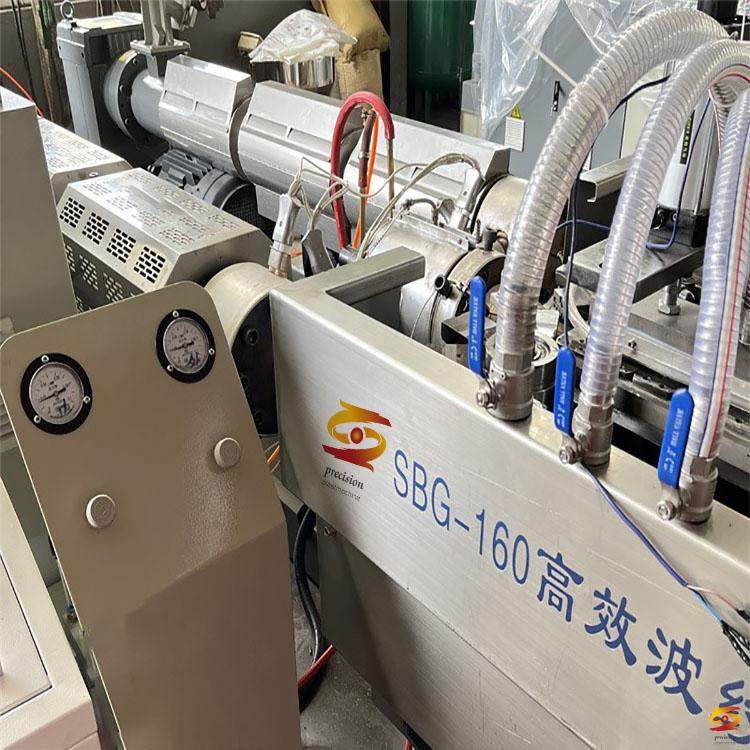

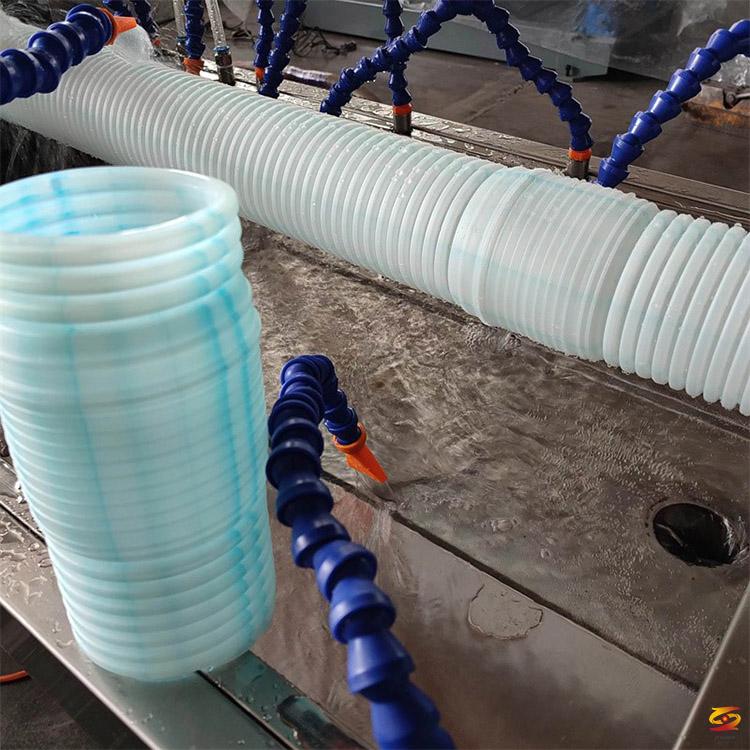

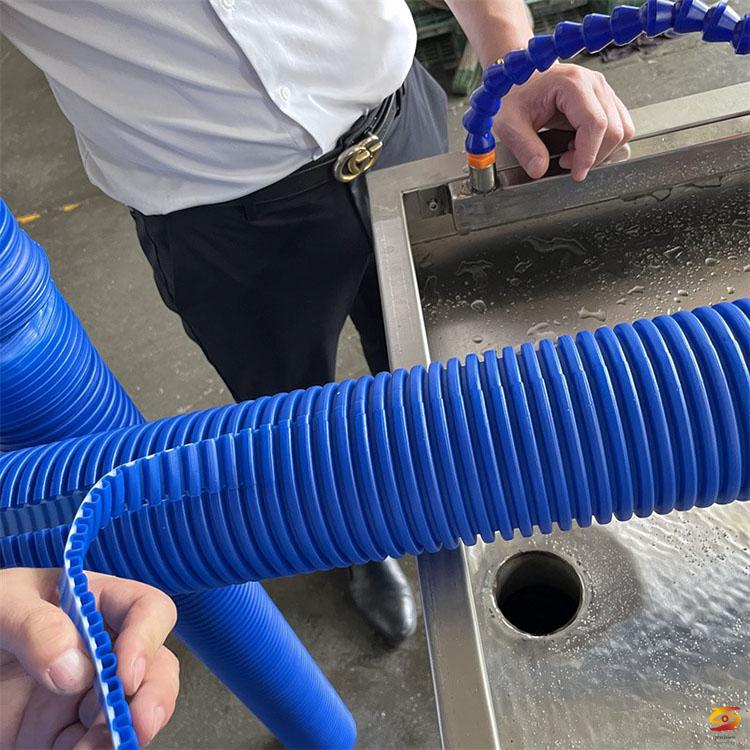

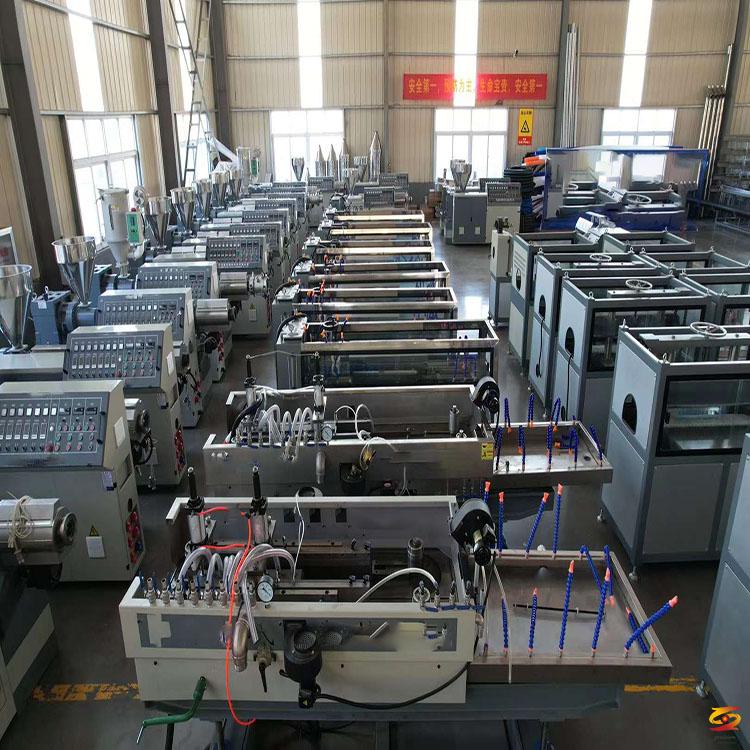

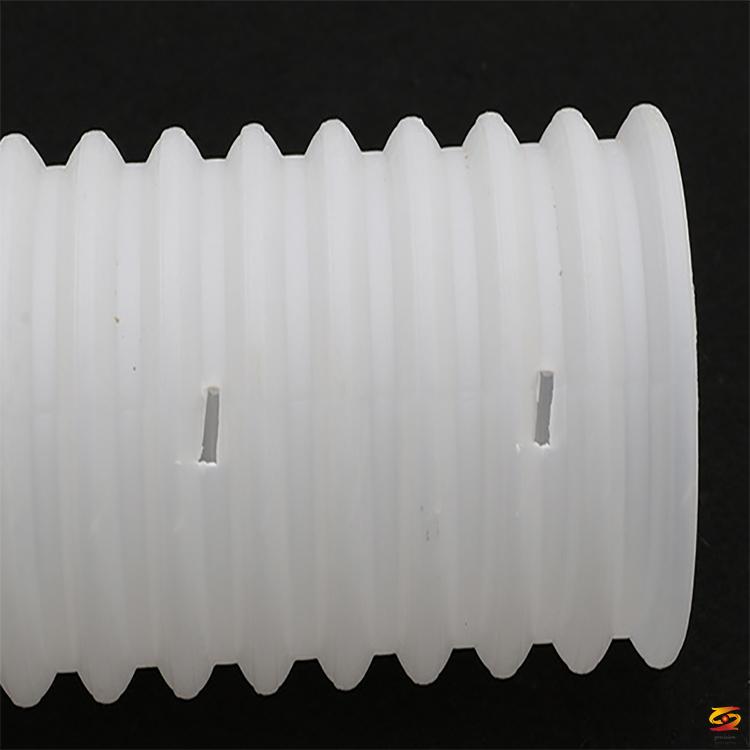

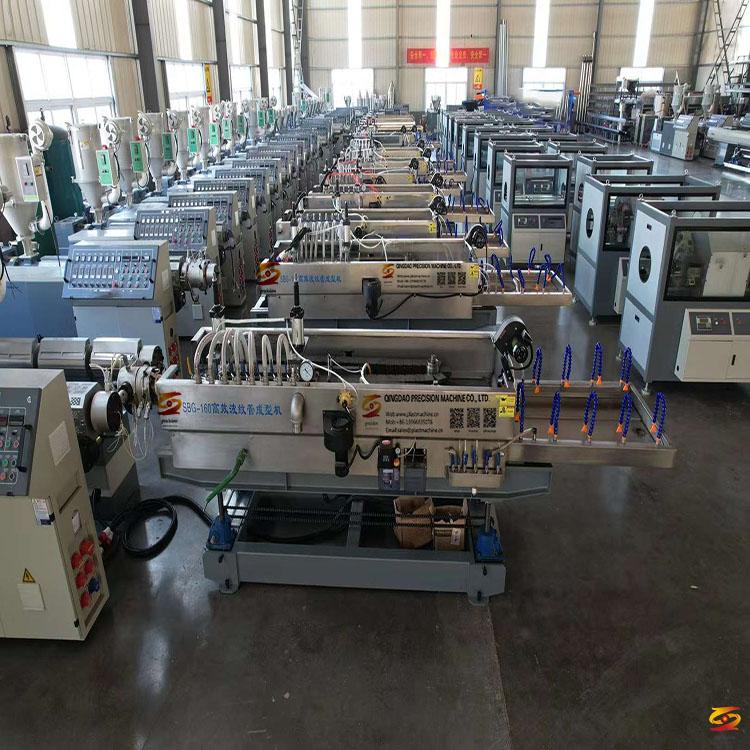

5.Forming machine & forming mold

1

Material of forming mold

40Cr, nitrogen treated

2

Forming mold

1 set

3

Quantity of mold block

90 pairs

4

Forming machine type

Horizontal type

5

Forming mold moving way

Circle

6

Drive motor power

4kw

7

Inverter

Holip

8

Cooling way

Air cooling

9

Power of blower

180w×3
