pe tube specification model table

pe tube specification model table

I often receive some calls to consult the pe tube specification model table, and sometimes say some non-standard specifications. This shows that at this time, there are still many customers who do not understand the specifications of PE tubes. I will summarize them for you. The pe tube specification model table is shared with you.

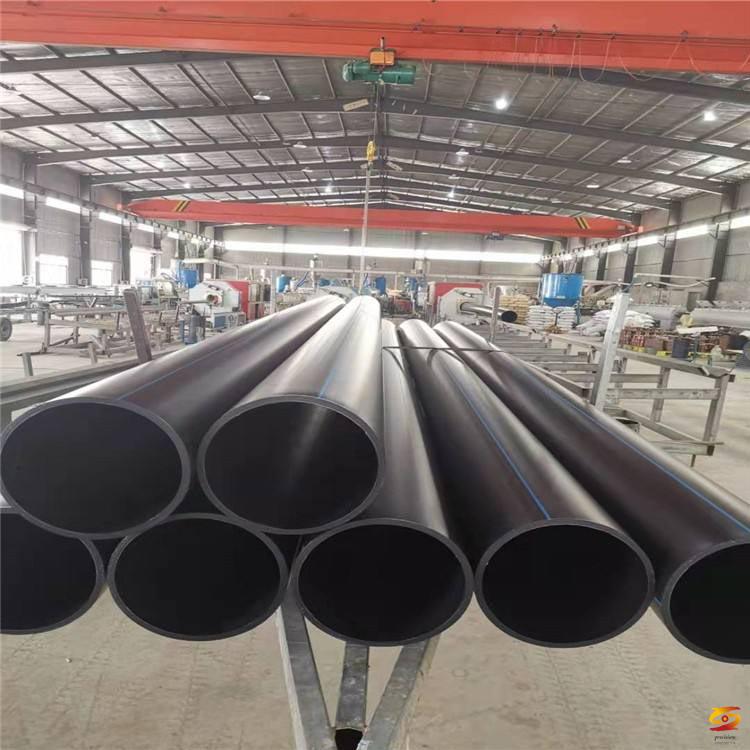

PE pipes are mainly divided into 0.6Mpa, 0.8Mpa, 1.0Mpa, 1.25Mpa, 1.6Mpa from the pressure level
Mpa is the unit of pressure, for example, 0.6Mpa means the pressure of 10 kg

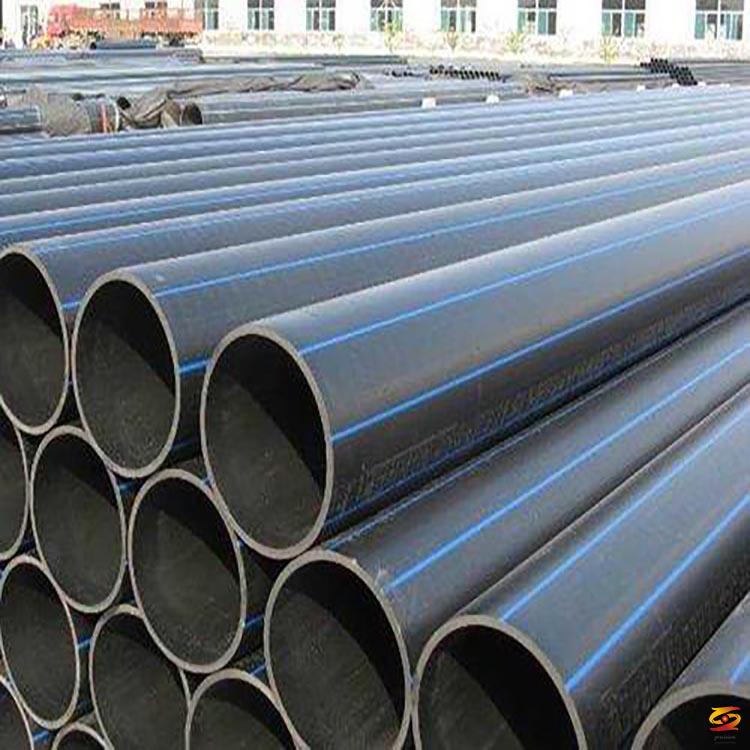

The diameter of PE pipes can be roughly divided into: 20, 25, 32, 40, 50, 63, 75, 90, 110, 125, 160, 180, 200, 225, 250, 280, 315, 355, 400, 450, 500, 560, 630, 710, 800, 900, 1000, 1200, 1400, the unit is mm or millimeter, the diameter of PE pipe refers to the outer diameter, the wall thickness of the pipe is different according to the different pressure levels Not the same.

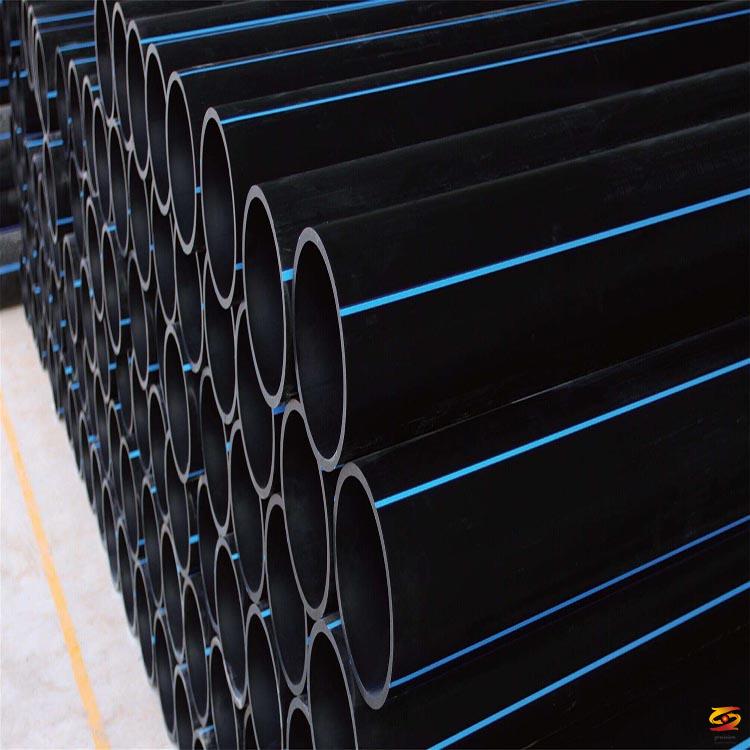

PE pipe specification and size table for your reference



Nominal pressure 0.6MPa 0.8MPa 1.0MPa 1.25MPa 1.6MPa Each meter can be customized
Standard size ratio SDR26 SDR21 SDR17 SDR13.6 SDR11
Nominal outer diameter Wall thickness Wall thickness Wall thickness Wall thickness Wall thickness
16 2.0 Coil / Straight
20 2.0 2.3 Coil / Straight
25 2.0 2.3 Coil / Straight
32 2.3 2.4 3.0 Coil / Straight
40 2.3 2.3 3.0 3.7 Coil / Straight
50 2.3 2.9 3.7 4.6 Coil / Straight
63 2.3 3.0 3.6 4.7 5.8 Coil / Straight
75 2.9 3.6 4.5 5.6 6.8 6.9.12
90 3.5 4.3 5.4 6.7 8.2 6.9.12
110 4.2 5.3 6.6 8.1 10.0 6.9.12
125 4.8 6.0 7.4 9.2 11.4 6.9.12
140 5.4 6.7 8.3 10.3 12.7 6.9.12
160 6.2 7.7 9.5 11.8 14.6 6.9.12
180 6.9 8.6 10.7 13.3 16.4 6.9.12
200 7.7 9.6 11.9 14.7 18.2 6.9.12
225 8.6 10.8 13.4 16.6 20.5 6.9.12
250 9.6 11.9 14.8 18.4 22.7 6.9.12
280 10.7 13.4 16.6 20.6 25.4 6.9.12
315 12.1 15.0 18.7 23.2 28.6 6.9.12
355 13.6 16.9 21.1 26.1 32.2 6.9.12
400 15.3 19.1 23.7 29.4 36.3 6.9.12
450 17.2 21.5 26.7 33.1 40.9 6.9.12
500 19.1 23.9 29.7 36.8 45.4 6.9.12
560 21.4 26.7 33.2 41.2 50.8 6.9.12
630 24.1 30.0 37.4 46.3 57.3 6.9.12
710 27.2 33.9 42.1 52.2-6.9.12
800 30.6 38.1 47.4 58.8-6.9.12
900 34.4 42.9 53.3 6.9.12
1000 38.2 47.7 59.3 6.9.12
1200 45.9 57.2 70.6 6.9.12
1400 53.9 66.7 82.4 6.9.12


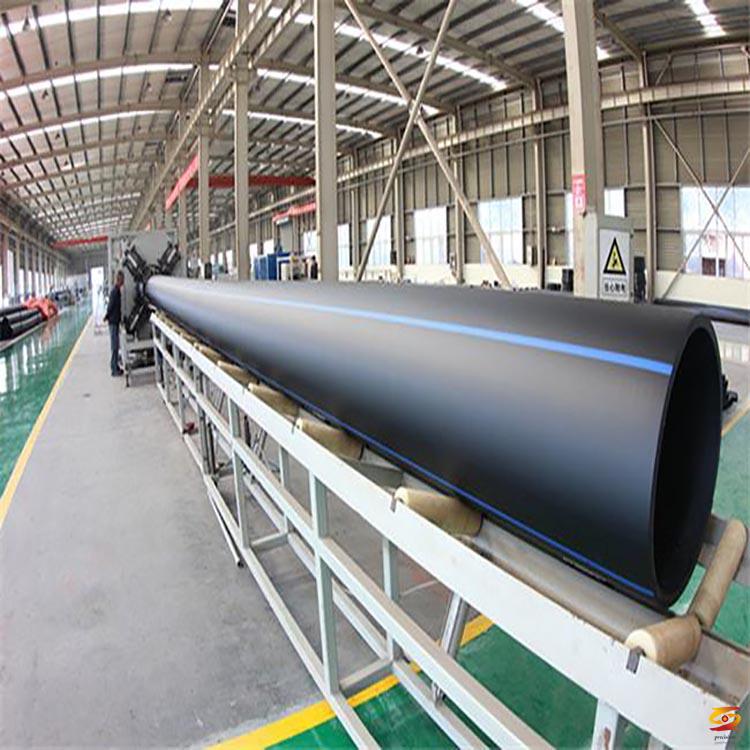

The above is the pe pipe specification model table that I share with you. After understanding the above knowledge, you can purchase the pipe you need according to your own project. When the PE threading pipe or the PE sewage pipe is used, the pressure can sometimes be relatively small, such as 0.4Mpa, etc., how to save costs.If you want to know more about it please do not hesitate to contact me. WhatsApp:+86-15966835076
