Feasibility Study on PP / PE / PC / PVC Hollow Space Board Production Line
Feasibility Study on PP / PE / PC / PVC Hollow Space Board Production LineThis unit consists of a single screw extruder, gear pump + hydraulic screen changer, hollow plate die head, vacuum setting table, primary traction machine, oven, corona treatment, cooling table, secondary traction, trimming, and fixed-length cutting , Unloading table, etc.
Vacuum shaping model points:
High-quality mold steel material or high-strength aluminum-magnesium alloy material
Special non-stick coating on the surface, hardening treatment
Independent partition controlled uniform vacuuming device and temperature control system
Product Usage:

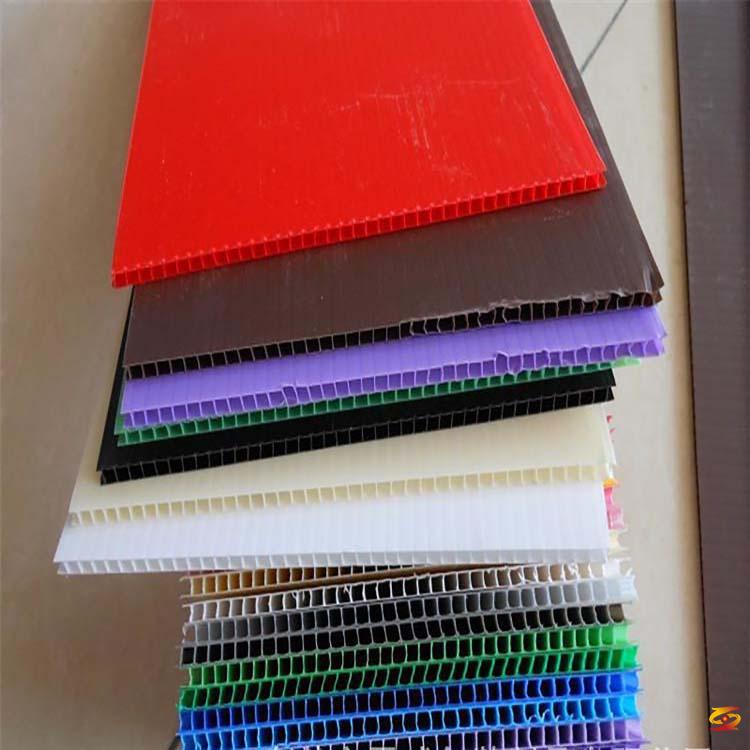

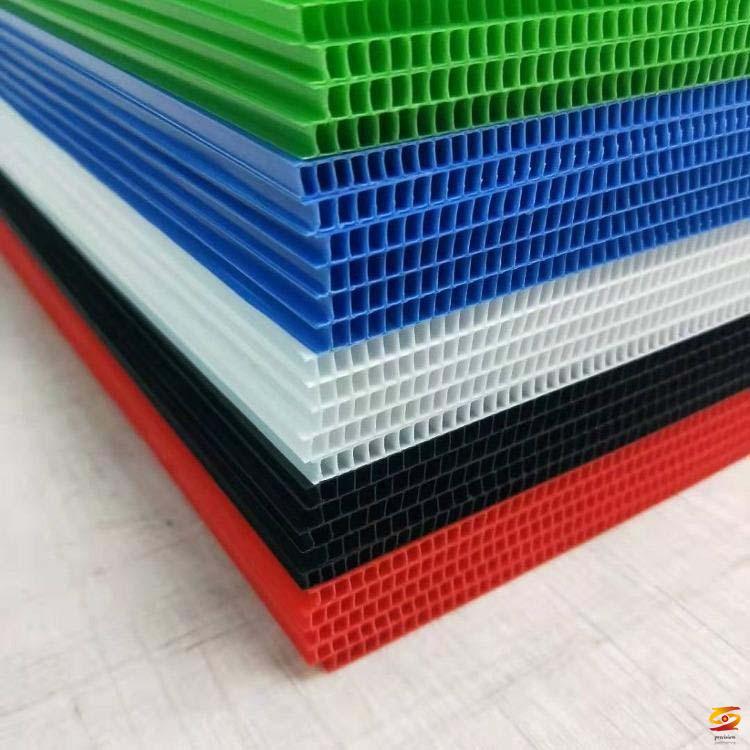

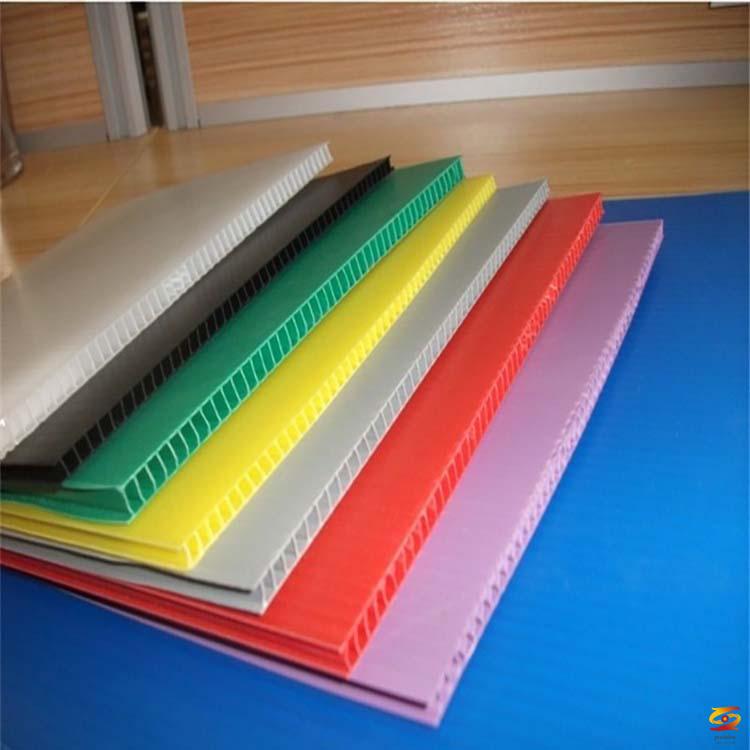

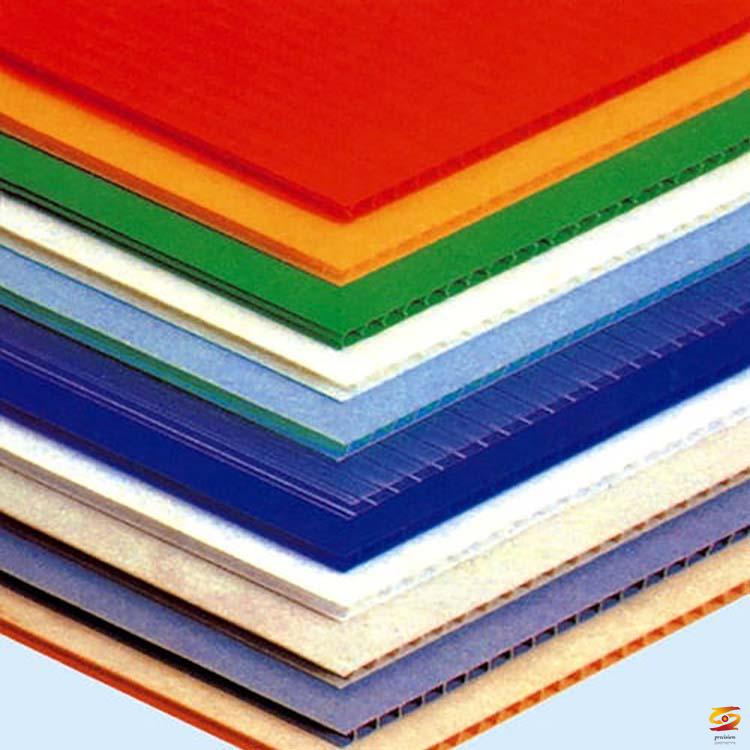

1. PP / PE lattice board has light material, high strength, moisture resistance, good environmental performance and secondary processing performance, and can be processed into turnover boxes and packaging boxes.
2. PC sun panel is widely used in the lighting roof of office building / hall / shopping mall / gymnasium / utility facilities, station / parking lot / pavilion / rest hall / corridor canopy, highway and urban elevated road noise barrier
Main technical parameters of PP / PE lattice board Main technical parameters of PC lattice board
Extruder specifications SJ-120, SJ-100 Extruder specifications SJ-120, SJ-45
Product width 2100mm, 1220mm Product width 2100mm
Product thickness 2-8mm, 2-8mm product thickness 4-40mm
Extrusion capacity 350kg / h, 200kg / h extrusion capacity 450kg / h
Host power 132kw Host power 132kw
If you want to know more about it please do not hesitate to
contact me. WhatsApp:+86-15966835076.
