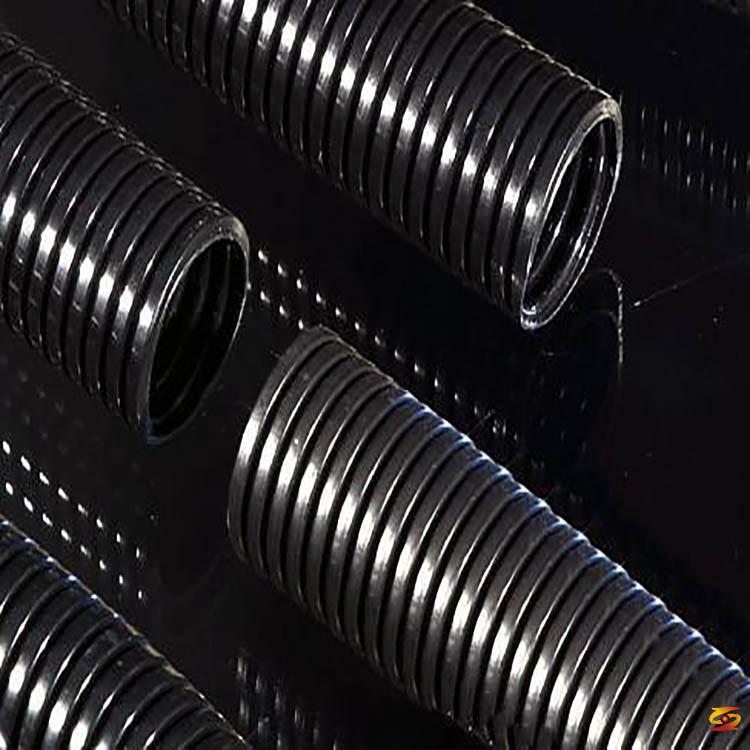

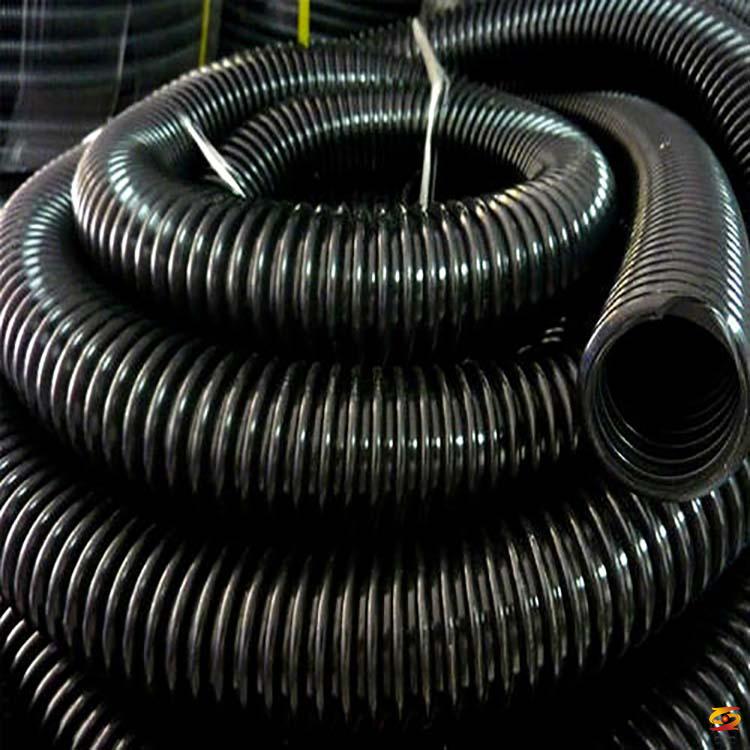

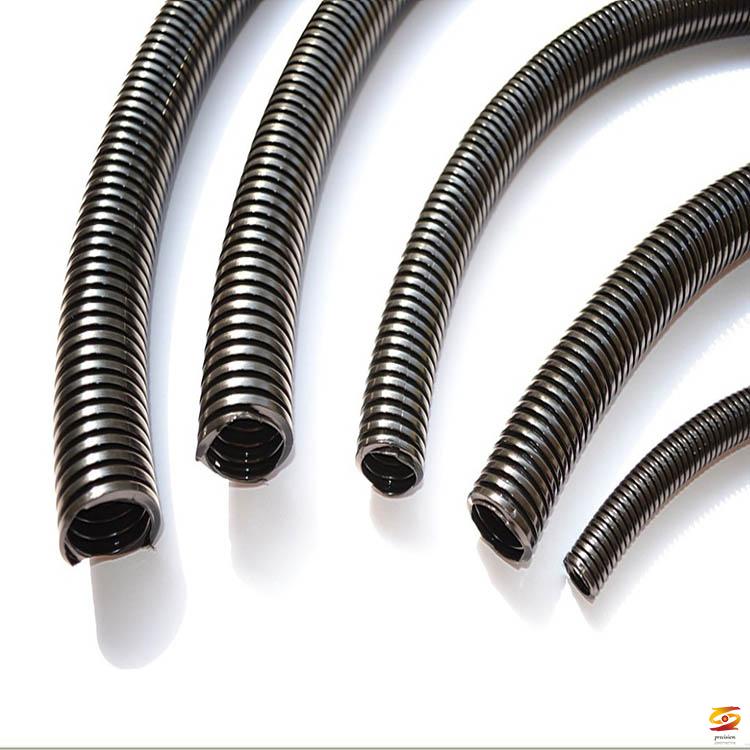

PA CORRUGATED PIPE SPECIFICATION REFERENCE
Product material: nylon pa6; working temperature: -40 ℃ ~ + 125 ℃, short-term up to + 150 ℃; flame retardant nylon hose can reach v0 level; structure: both internal and external waves; color: nylon hose usually Black, other colors can be customized (open according to need); Features: good flexibility, twist resistance, good bending performance; acid resistance, lubricating oil, coolant, etc., bright surface gloss, friction resistance; load capacity: can withstand foot Heavy pressure, no breakage, no deformation, can be recovered quickly without any damage; Application areas: machinery manufacturing, electrical insulation protection, lighting equipment, automobile manufacturing, aviation equipment, subway, train, automatic control and other industries; Method of use: Insert the wire and cable into the tube, and then match the hose connector. Scope of use: In the environment without sulfuric acid, formic acid, acetic acid, nitric acid, hydrochloric acid, calcium chloride, methanol and strong oxidants; soluble in ethylene glycol, glacial acetic acid, chloroethanol, propylene glycol, 1,5 pentanediol Methanol solution of trichloroethylene and zinc chloride, phenol, cresol and other solvents. Mainly used in the environment with a temperature range of -34 ~ 150 ℃; used in the sheath of wire harnesses for automobiles, motorcycles and other motor vehicles; also used for the sheath of wire harnesses for household appliances, precision machine tools and other equipment; Animal and vegetable oils and mineral oils have good stability; they are resistant to various concentrations of alkali.The model of this product is AD18.5, the nominal outer diameter is 18.5 (mm), the material is PA, the purpose is a wire sheath, the wall thickness is standard (mm), the structure is a single-wall corrugated pipe, and the temperature range is the operating temperature: -40 ℃ ~ + 125 ℃, short-term up to + 150 ℃; flame retardant nylon hose can reach V0 level; length can be customized (m), color is nylon hose is usually black, other colors can be customized (according to need) Opening), the structure is the structure: both the inside and the outside are wavy; the application areas are machinery manufacturing, electrical insulation protection, lighting equipment, automobile manufacturing, aviation equipment, subway, train, automation control and other industries;
